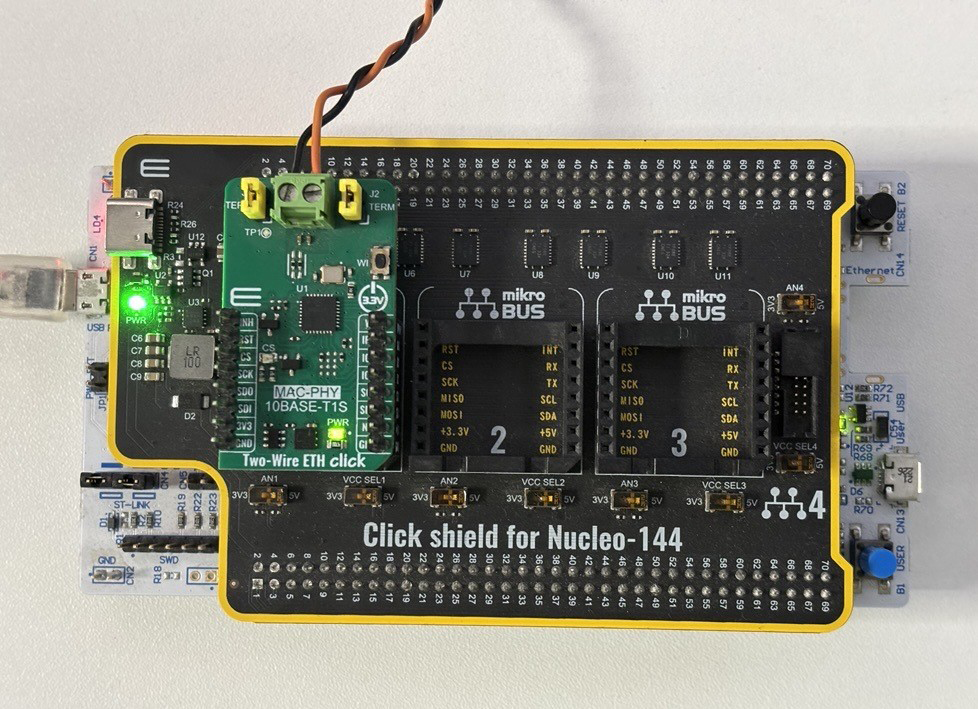

Connect the Click shield adapter
board to the pin header of the STM32F413ZH Nucleo-144 board.
Insert the Two-Wire ETH Click board with the LAN8651 chip into the
“mikroBus 1” connector on the click shield adapter board.
Power up the board by connecting a
Micro USB B Type cable between the USB power port of the target platform and your
host machine.
