9 Support Documentation

This chapter provides generic documentation that supports the application example documentation.

9.1 User Actions

This section explains the code modifications required after generating code using MCC.

Developers must call the app_idle_task() API within vApplicationIdleHook() to enable periodic Persistent Data Storage and RF calibration. Persistent Data Storage stores data in non-volatile memory (Flash), ensuring that application and stack parameters, such as peer connection information, are saved. The Idle Task executes at the lowest priority level in FreeRTOS

  1. During project compilation or build, a compile-time error prompts developers to call app_idle_task() and app_idle_updateRtcCnt(RTC_Timer32CounterGet()).

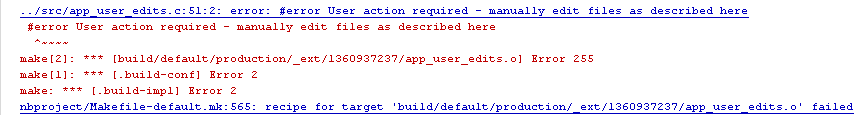

    Figure 9-1. Compile-time Error
    Figure 9-2. User Action Required

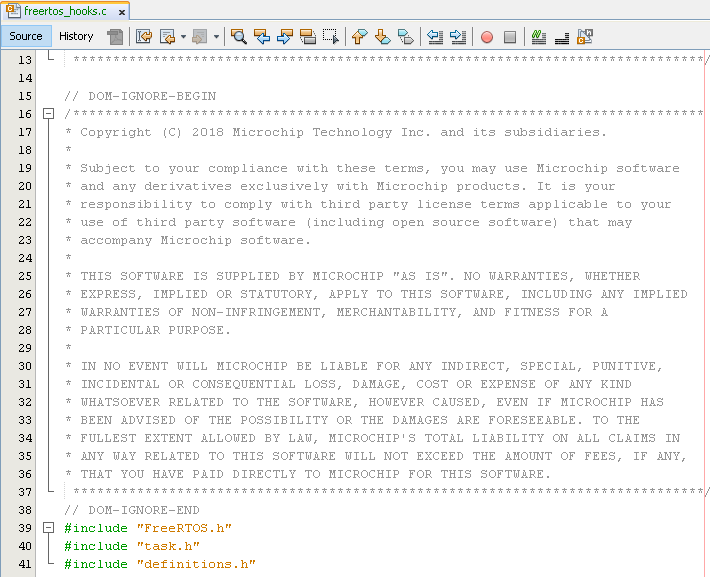

  2. Users are required to open freertos_hooks.c file and add #include "definitions.h"

  3. Users are required to open freertos_hooks.c file and add API app_idle_task()

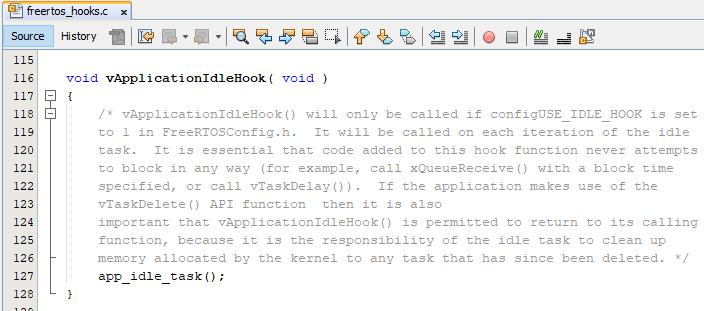

    Figure 9-3. freertos_hooks.c

  4. Users are required to comment out “#error” in app_user_edits.c file

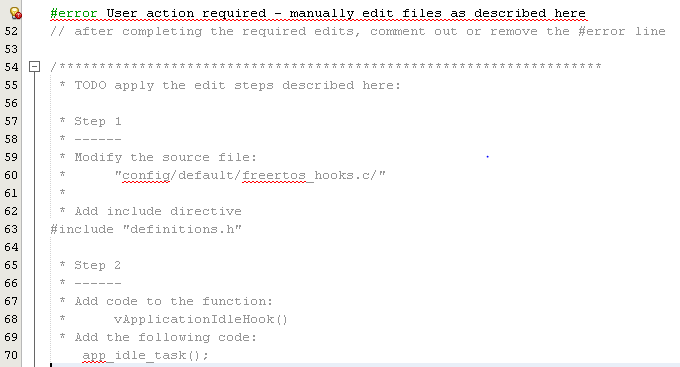

    Figure 9-4. app_user_edits.c

  5. Initiate build and user will be able to build successfully

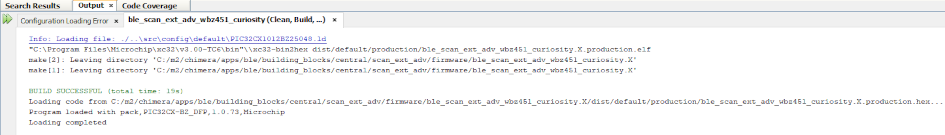

    Figure 9-5. Build Successful
Note: User action is required only the first time the code is generated.

Additional User Action when Low Power is Enabled

Developers are required to call app_idle_updateRtcCnt(RTC_Timer32CounterGet()) in vApplicationTickHook(). This API call is used to compensate for FreeRTOS Timer when in Sleep mode.

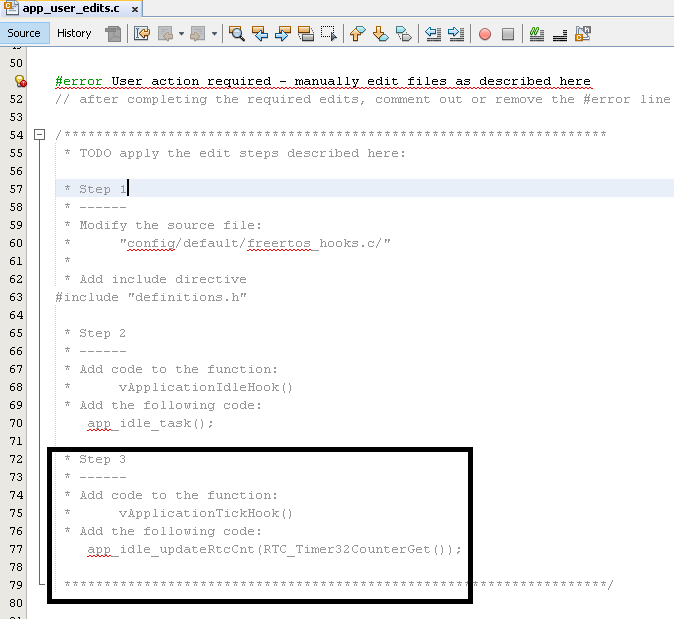

Figure 9-6. app_user_edits.c

  1. Users are required to open freertos_hooks.c file and add API app_idle_updateRtcCnt(RTC_Timer32CounterGet())

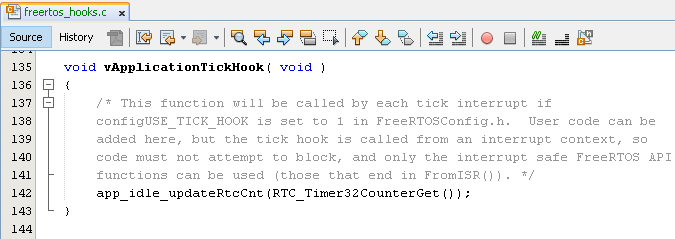

    Figure 9-7. freertos_hooks.c

9.2 MPLAB Code Configurator (MCC) Code Generation

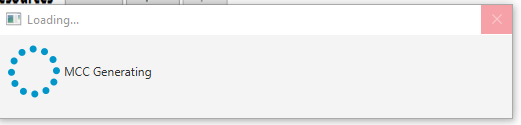

  1. Generate a code.
  2. Select Generate.

Merge Strategy

For more details on Merge Strategy and its understanding, refer to the MPLAB® Code Configurator (MCC) Classic in Reference Documentation from Related Links.

Note: Select “Close” the merge window to maintain the modifications made for the application code development.

9.3 Known Issues

  • Continued enhancements of device discovery during Bluetooth® LE advertisements and consistency of data exchange robustness in multi role environment.
