4.3 MCC ADC Resource Configuration

The PIC10/PIC12/PIC16/PIC18 MCUs selection offers you the possibility to directly set up the peripheral in its finest details, via the Easy Setup view.

The Foundation Services Library is more abstract in nature, typically offering the basic functionality of the peripheral and easing the configuration process.

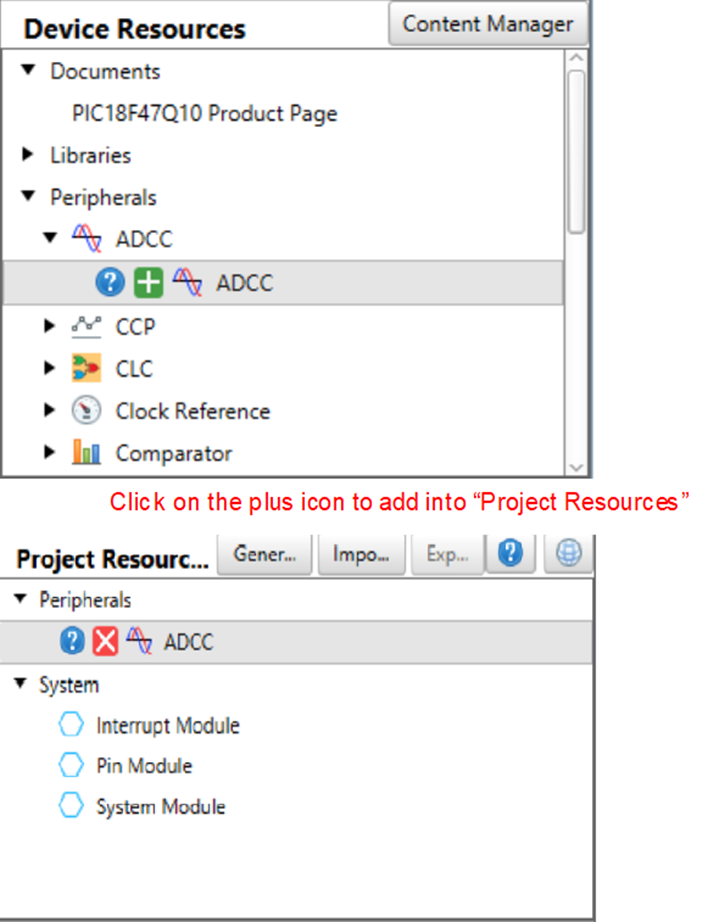

Figure 4-3. ADC Resource Selection

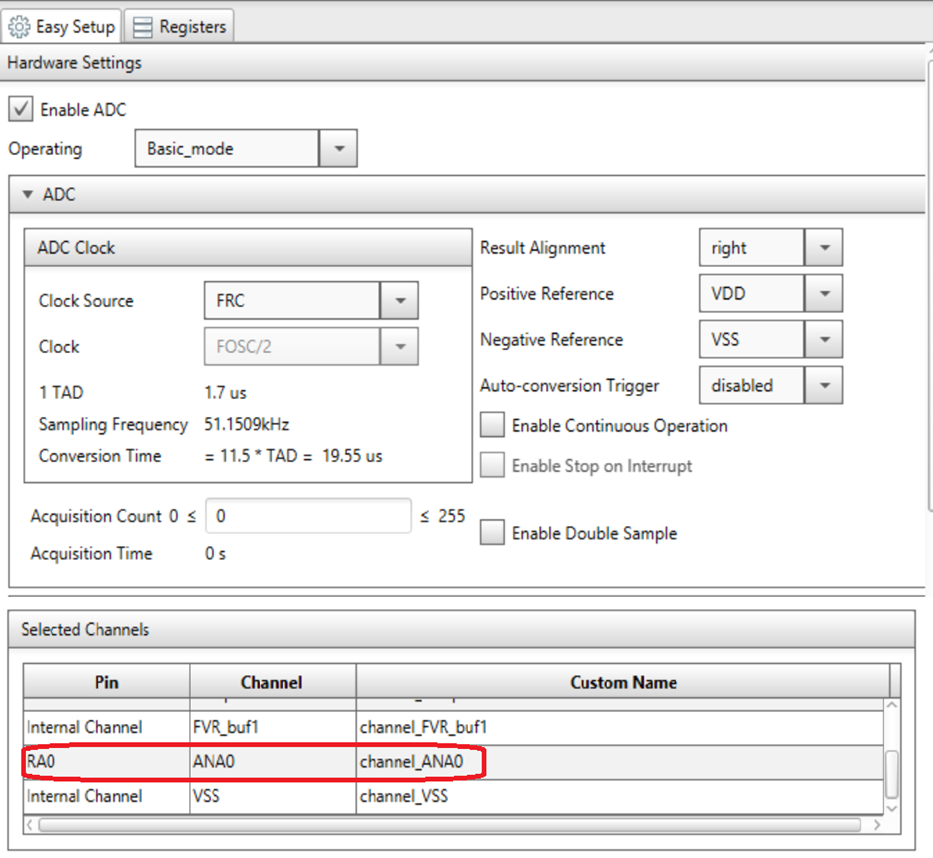

Figure 4-4. ADC Resource Configuration

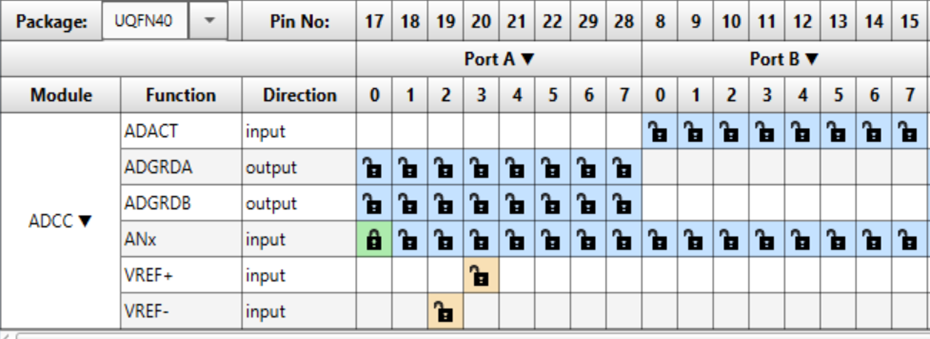

RA0 to ANA0 map displays after selection is made in the figure below.

Figure 4-5. ADC Pin Resource Grid
