2 Product Identification System
Note: The full part number does not have spaces and should contain
dashes as indicated.

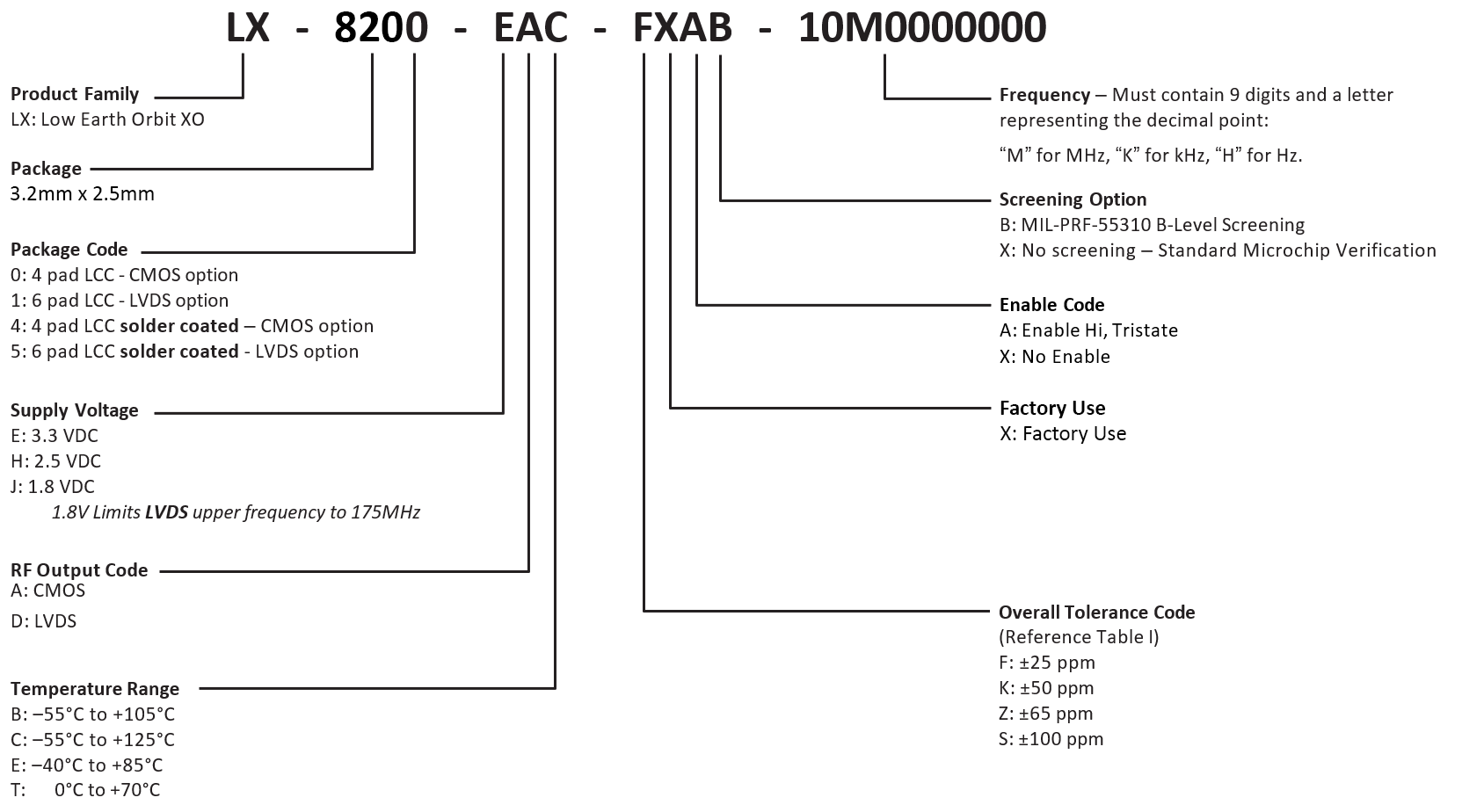

Example 1: LX-8200-EAC-FXAB-10M0000000
| Table I: Overall Tolerance Code | |
|---|---|
| Temperature Range | Overall Tolerance |
| C: −55°C to +125°C | Z: ±65ppm |
| S: ±100ppm | |
|
B: −55°C to +105°C E: −40°C to+85°C | K: ±50ppm |
| Z: ±65ppm | |
| S: ±100ppm | |
| T: 0°C to +70°C | F: ±25ppm |
| K: ±50ppm | |
| Z: ±65ppm | |
| S: ±100ppm | |
