1.1 audio_enc

The audio encoder (audio_enc) application configures the SAM E70 Xplained Ultra development board to be in USB Host Mass Storage Device (MSD) mode. The application supports read/write from/to the FAT file system. When a mass storage device is connected to the development board via its target USB port, the device is mounted. After the MSD is mounted, the application waits for a short button press (< 1 sec) to start recording data from the mic input on the WM8904 Audio Codec Module. This recording will continue until another short press is detected signaling to stop recording. The recorded data is then PCM encoded and packed into a .wav container file and saved on the MSD. The app then waits to playback the last recorded file or encode another file.

All encodings are at 16K sample rate, stereo, and 16 bit depth. The name of the encoded file will be created according to the following (enc16K16b<000-999>.wav). A file will not be written over if it already exists. If a file is found to be already on the MSD, the numeric part of the file name will be incremented once until an unused file name is found. If trying to playback the last encoded file but there has been no file encoded yet, both LEDs will flash and the app will go back to waiting to start encoding a file. If there is a file available to be played, the app will read the .wav file data and write it to the codec for playback.

Command and control to the codec is done through an I2C driver. Data to the codec driver is sent through I2SC via I2S Driver and the output will be audible through the headphone output jack of the WM8904 Audio Codec Module connected to the SAM E70 Xplained Ultra board. The below architecture diagram depicts a representation of the application.

The current development board, SAM E70 Xplained Ultra, supplies one button and two LEDs for control and status feedback. LED 1 is amber and LED 2 is green. The application currently only supports PCM encoding and playback to and from a .wav file container.

Supported audio files are as represented in the table below.

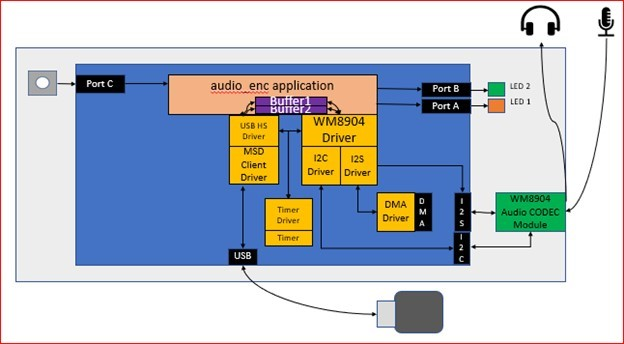

The audio encoder (audio_enc) application uses the MPLAB Code Configurator to setup the USB Host, FS, Codec, and other items in order to read the music files on a USB MSD drive and play it back on the WM8904 Codec Module. It scans WAV (PCM) format files on mounted FAT USB thumb drive and streams audio through a WM8904 Audio Codec to a speaker. In the application, the number of audio output buffers can always set to be more than two to enhance the audio quality. And, the size of input buffer in this application is chosen to be able to handle all data supported. The following figure shows the architecture for the demonstration.

• USB MSD Host Client Driver (see H3 USB MSD Host Client Driver Library)
• FAT File System (see H3 File System Service Library)
• Audio real-time buffer handling
• WM8904 Codec Driver (see H3 CODEC Driver Libraries)
• I2S usage in audio system (see H3 I2S Driver Library Help)
• DMA (see H3 DMA area)
• Timer (see H3 Timer area)
• GPIO Control (see H3 GPIO area)

1. Add BSP->SAM E70 Xplained Ultra BSP
2. Add Audio->Templates->WM8904 Codec
   • Yes to all popups
   • Modify WM8904 Codec from SSC to I2SC
   • Yes to all popups
3. Add Libraries->USB->Host Stack->MSD Client Driver
   • Yes to all popups
4. Add Harmony->System Services->FILE SYSTEM
5. Add Harmony->Audio->Decoder->AudioDecoderLibraries
6. Add Harmony->Audio->Encoder->AudioEncoderLibraries
7. Remove FreeRTOS if Bare Metal version

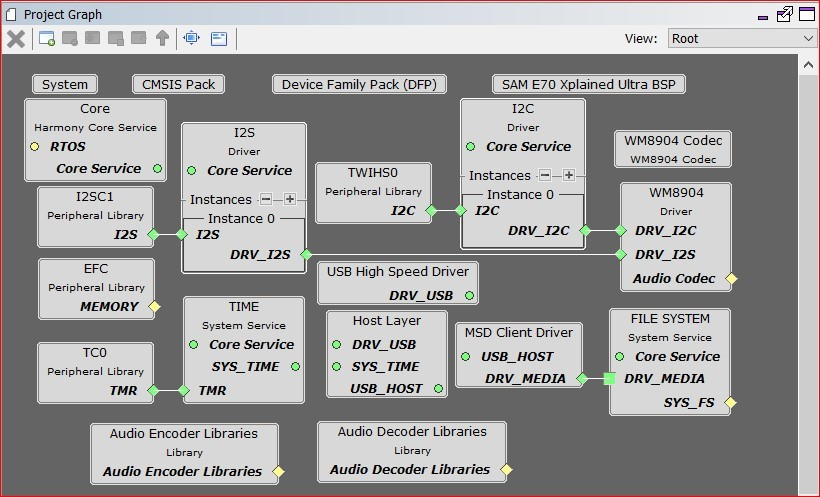

8. Connect MSD Client Driver: DRV_MEDIA to FILE SYSTEM: DRV_MEDIA After reorganization, your graph should look similar to the following:

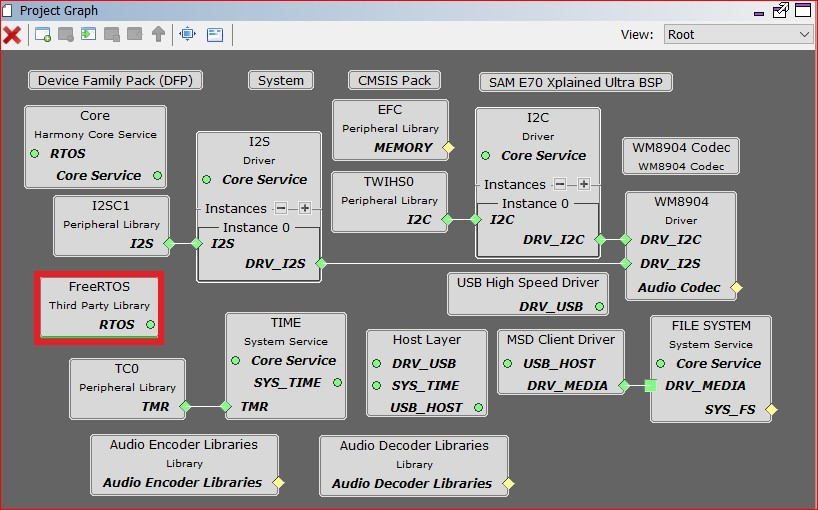

   If using FreeRTOS, your diagram will be slightly different. You will see an additional block for FreeRTOS as shown below.



The default configuration should be correct for the majority of the app. The following configurations will need to be changed for proper operations.

MPLAB Code Configurator: Tools->Clock Configuration

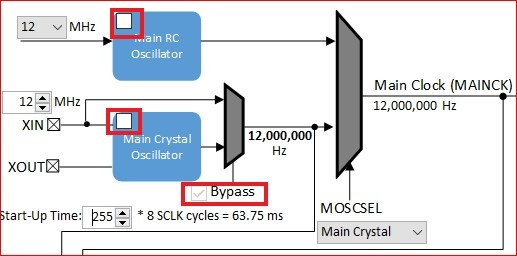

Uncheck the Main RC Oscillator and check the "Bypass" for the Main Crystal Oscillator. When the Bypass is checked, it will cause the Main Crystal Oscillator to become unchecked.

Enable the PLLA Clock output.

Enable clocking for the I2S1.

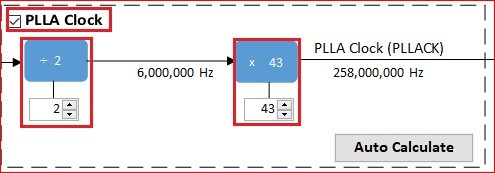

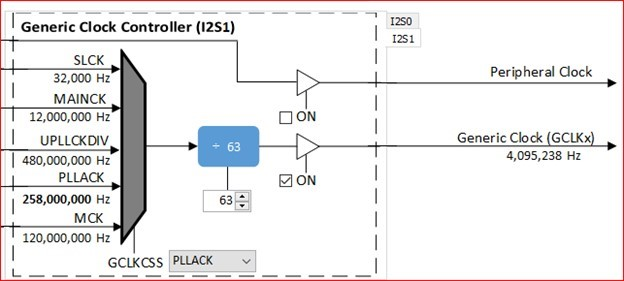

To set the sample rate to a fixed 16 kHz, set the PLLA divisor to 2 and the multiplier to 43. Also, set the I2S1 divisor to 63. Please see the two images above.

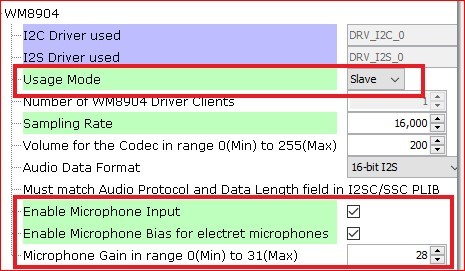

MPLAB Code Configurator: WM8904

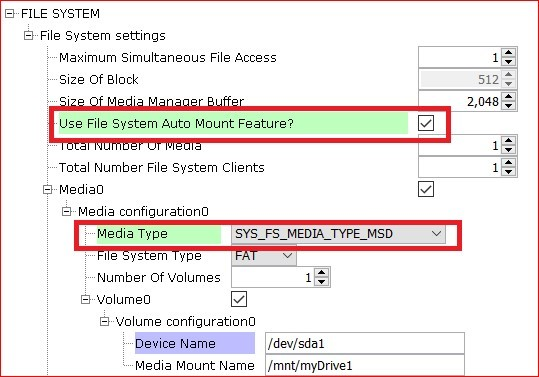

MPLAB Code Configurator: File System

The Auto Mount feature must be selected in order to expose the media type selection. The media type that is being used in this application is Mass Storage Device. This must be correctly configured, or the storage device will not mount.

MPLAB Code Configurator: I2C Driver

If you are using FreeRTOS, set the driver mode back to Asynchronous.

MPLAB Code Configurator: System

Set the heap size in Harmony if it is not already set for the linker.

MPLAB Code Configurator: EFC

Set the memory wait states to 6, if not already set.

MPLAB Code Configurator: Audio Decoder Libraries Disable the ADPCM Decoder for this particular app.

Save and generate code for the framework.

This section identifies the MPLAB X IDE project name and location and lists and describes the available configurations for the demonstration.

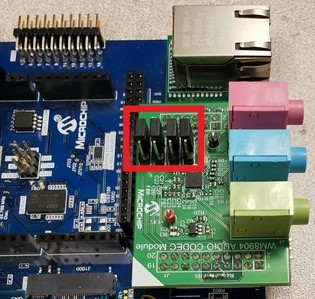

This section describes how to configure the supported hardware.

This section demonstrates how to run the demonstration.

1. Long presses of the push button cause the app to attempt to playback the last encoded file that is saved on the MSD. The two LEDs flash if there is no file that has been encoded.
2. Short presses of the push button cause the app to start or stop encoding.

Button control is shown in the table below.

1. When the application first starts running, it looks to find an attached storage device. If one is not found, LED1 will toggle on and off about every 100 ms indicating that a storage device is not attached.
2. If/When a storage device is attached, LED1 will turn off.
3. LED2 will turn on when the application is ready to start encoding or playback the last encoded file. If playback is chosen without first creating an encoded file, LED1 and LED2 will toggle briefly then the app will wait for encoding to start.

LED status indication is shown in the table below.
