5.3 Phase-Shifted Full-Bridge

The primary Phase-Shifted Full-Bridge uses Microchip’s 1200V, 80 mΩ SiC MOSFET (MSC080SMA120SA) in the TO263 7-lead package with a source sense. This MOSFET is a bottom cooled package, therefore, the heat loss produced must be efficiently taken out of this package through the PCB with copper embeds. This provides a direct thermal interface to the baseplate, which acts as the main heat sink.

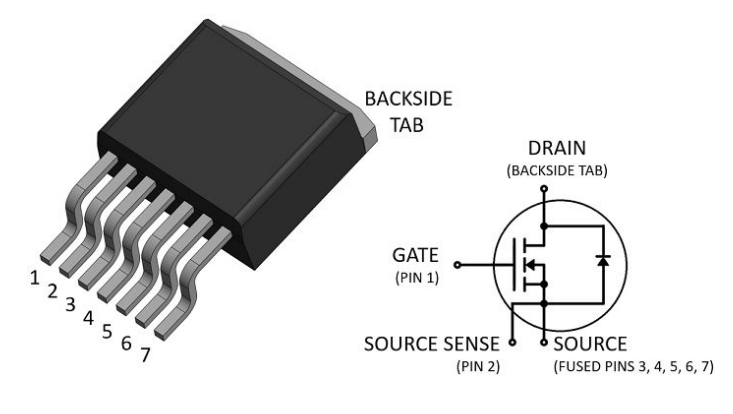

Figure 5-3. Microchip’s 1200V, 80 mΩ SiC FET (MSC080SMA120SA)
A black electronic device with a circuit diagram AI-generated content may be incorrect.

The MSC080SMA120SA device is designed for the following applications:

  • PV inverter, converter and industrial motor drives
  • Smart grid transmission and distribution
  • Induction heating and welding
  • H/EV powertrain and EV charger
  • Power supply and distribution
Figure 5-4. Primary Side High-Voltage Half-Bridge for PSFB
