1.6.2.2 USB/UDP Firmware Update Mode Execution Flow

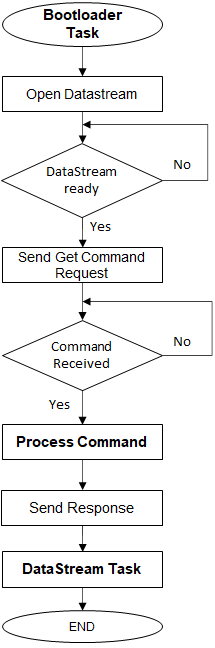

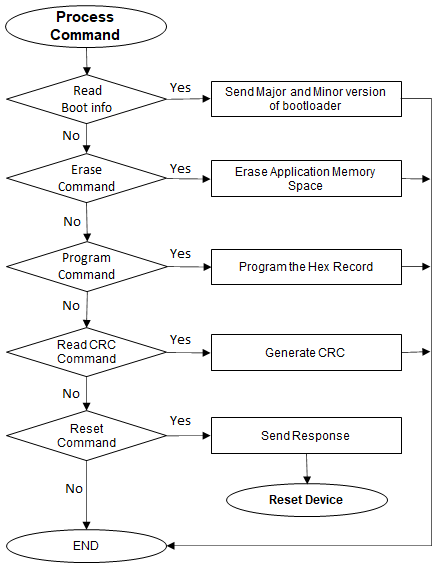

Bootloader Task Flow

• Erases the Flash memory

• Programs the hex file records into Flash memory

• Jumps to the Application

• Calls the DataStream Task at end of its every state machine execution to receive any packet from the Host PC

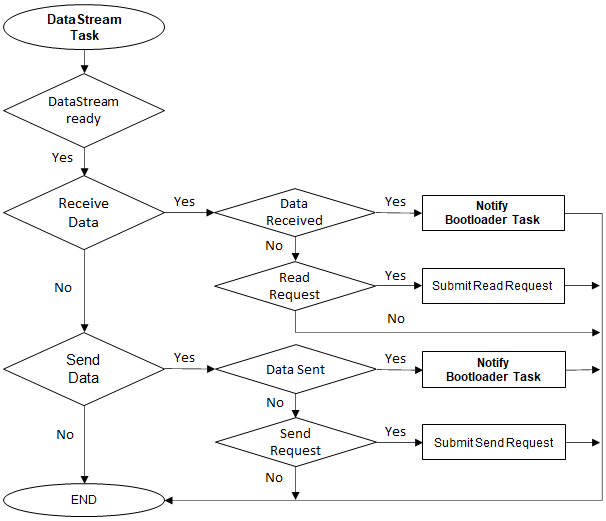

DataStream Task Flow

• This task is used to receive data bytes from host PC and to send response to host PC

• It notifies the Bootloader task on completion of Data Reception or data transmit through callback
