3.2.2 Bluetooth DTM

The following table provides the command syntax for Bluetooth DTM mode initialization.

Table 3-17. Initialization of DTM Mode
Command Syntax	MCHPRT DTM init
Example	MCHPRT DTM init

The following figure shows the example of DTM initialization.

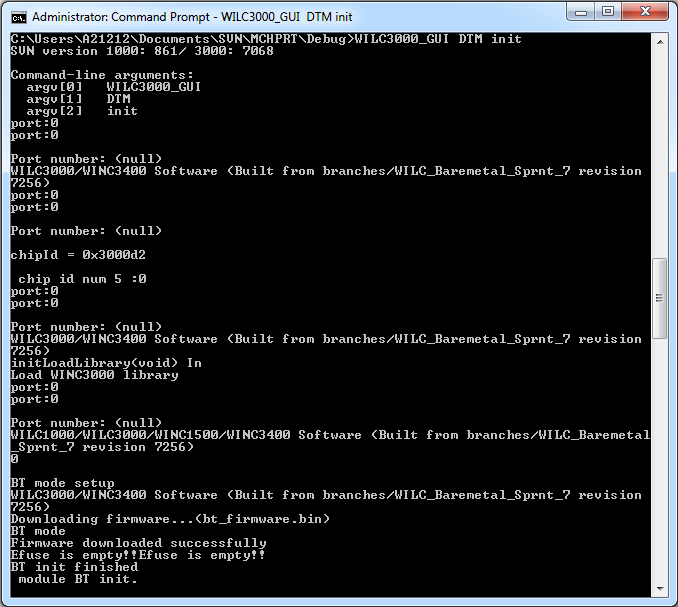

Figure 3-22. Console Log of DTM Initialization

The following table provides the command syntax for DTM mode exit.

Table 3-18. Exit DTM Mode
Command Syntax	MCHPRT 9 5
Example	MCHPRT 9 5

The following figure shows the example of DTM mode exit.

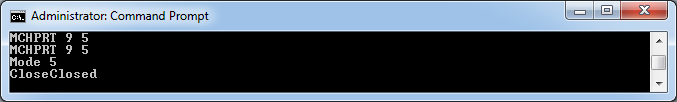

Figure 3-23. Console Log of DTM Mode Exit
