3.3.2 HCI TX

The following table provides the command syntax for the HCI TX test.

Table 3-27. Start HCI TX: HCI command only
Command Syntax MCHPRT HCI 1 X Y Z
X X refer to TX channel: 0 to 39
  • 0 – Channel 0 (2402 MHz)
  • 39 – Channel 39 (2480 MHz)
Y Y refers to Length: 0 – 37
  • 1 – 0x1
  • 37 – 0x25
Z Z refers to Payload: 0 – 7
  • 0 – PRBS9
  • 1 – 11110000
  • 2 – 10101010
  • 3 – PRBS15
  • 4 – 11111111
  • 5 – 00000000
  • 6 – 00001111
  • 7 – 01010101
Example MCHPRT HCI 1 0 37 1

Channel 0. 0x25 length, PRBS9

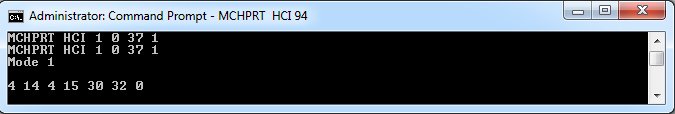

The following figure shows the example of HCI TX test mode.

Figure 3-34. Console Log of HCI TX Test Mode
