1.11 FREQM Measurement

This example application demonstrates how to use the FREQM peripheral to measure the frequency of the internal RC Oscillator.

Description

The FREQM can be used to accurately measure the frequency of a clock by comparing it to a known reference clock. The FREQM counts the number of periods of the measured clock with respect to the reference clock. This example application shows how to measure the CPU frequency using the 32-kHz crystal oscillator as the reference clock.

Downloading and Building the Application

To clone or download this application from Github, go to the main page of this repository and then click Clone button to clone this repository or download as zip file.

Path of the application within the repository is apps/freqm/freqm_measure_clock_freq.

To build the application, refer to the following table and open the project using its IDE.

Project NameDescription

pic32wm_bw1_curiosity.X

MPLAB X project for PIC32WM-BW1 Curiosity board

Setting Up the Hardware

The following table shows the target hardware for the application projects.

Project NameBoard
pic32wm_bw1_curiosity.XPIC32WM-BW1 Curiosity board

Setting Up PIC32WM-BW1 Curiosity Board

  • Connect the USB port on the board to the computer using a USB Type-C cable

Running the Application

  1. Open the Terminal application (E.g., Tera term) on the computer.
  2. Connect to the USB COM port and configure the serial settings as follows:
    • Baud : 115200
    • Data : 8 Bits
    • Parity : None
    • Stop : 1 Bit
    • Flow Control : None
  3. Build and program the application using its IDE.

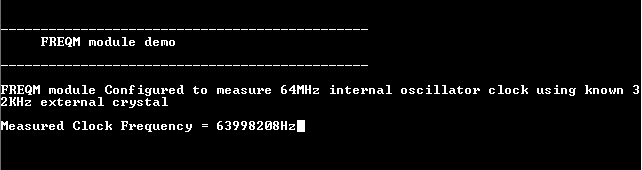

  4. Observe output message in console as follows.
    Note: The measured clock frequency is approximate. The actual frequency may vary due to the measurement error.
