4.2 Adding the Secure Application Logic

To develop and run the application, follow these steps:

Declare the following variables and macros used by the secure application in the main.c file.

#include <string.h>
#include "non_secure_app_image_pic32cm_ls00_cnano.h"

#define APP_IMAGE_SIZE          sizeof(image_pattern)
#define APP_IMAGE_END_ADDR      (APP_IMAGE_START_ADDR + APP_IMAGE_SIZE)
#define NON_SECURE_APP_ADDR     (TZ_START_NS)

static uint8_t *appStart = (uint8_t *)NON_SECURE_APP_ADDR;
static uint8_t *dataStart = (uint8_t *)NVMCTRL_DATAFLASH_START_ADDRESS;

uint8_t firmware_digest_0[64];
uint8_t firmware_digest_1[32];

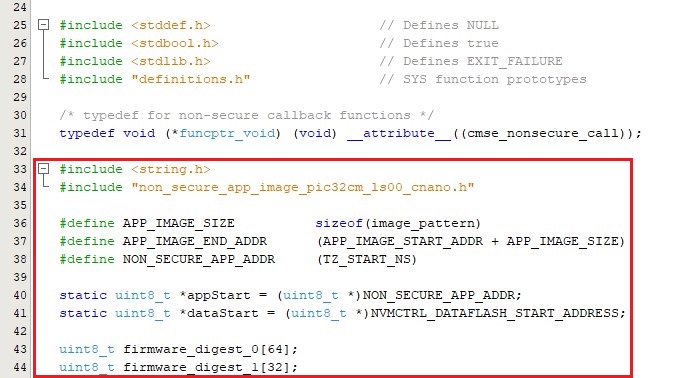

Figure 4-7. Declaration of Variables and Macros

Add the Boot ROM APIs in the main.c file to access them as follows.

typedef struct
{
    /* Digest result of SHA256 */
    uint32_t digest[8];
    /* Length of the message */
    uint64_t length;
    /* Holds the size of the remaining part of data */
    uint32_t remain_size;
    /* Buffer of remaining part of data (512 bits data block) */
    uint8_t remain_ram[64];
    /* RAM buffer of 256 bytes used by crya_sha_process */
    uint32_t process_buf[64];

} SHA256_CTX;

SHA256_CTX sha256_ctx;

typedef void (*crya_sha256_init_t) (SHA256_CTX *context);
typedef void (*crya_sha256_update_t) (SHA256_CTX *context, const unsigned char *data, size_t length);
typedef void (*crya_sha256_final_t) (SHA256_CTX *context, unsigned char output[32]);

#define crya_sha256_init ((crya_sha256_init_t) (0x02006810 | 0x1))
#define crya_sha256_update ((crya_sha256_update_t) (0x02006814 | 0x1))
#define crya_sha256_final ((crya_sha256_final_t) (0x02006818 | 0x1))

Include the flash_write API in the main.c file to program the Non-Secure firmware in the Non-Secure Flash region and write the firmware digest in the Secure Data Flash.

static void flash_write(uint32_t addr, uint8_t *buf, uint32_t size)
{
    uint32_t end_addr = addr + size;

    if((addr & NVMCTRL_DATAFLASH_START_ADDRESS) == NVMCTRL_DATAFLASH_START_ADDRESS)
    {
        /* Unlock the Secure Data Flash region */
        NVMCTRL_RegionUnlock(NVMCTRL_SECURE_MEMORY_REGION_DATA);
        while(NVMCTRL_IsBusy());
    }

    else
    {
        /* Unlock the Non-Secure Flash region */
        NVMCTRL_RegionUnlock(NVMCTRL_MEMORY_REGION_APPLICATION);
        while(NVMCTRL_IsBusy());
    }

    do
    {
        if(addr % NVMCTRL_FLASH_ROWSIZE == 0)
        {
            /* Erase the row */
            NVMCTRL_RowErase(addr);
            while(NVMCTRL_IsBusy());
        }

        /* Program 64 byte page */
        NVMCTRL_PageWrite((uint32_t *)(buf), addr);
        while(NVMCTRL_IsBusy());

        addr += NVMCTRL_FLASH_PAGESIZE;
        buf += NVMCTRL_FLASH_PAGESIZE;

    }while (addr < end_addr);
}

Add the SHA-256 Hash and Non-Secure firmware verification API to the main.c file for calculating the Non-Secure firmware digest.

static void sha256_hash(SHA256_CTX *ctx, const uint8_t *message, uint32_t length,
        unsigned char digest[32])
{
    uint8_t dataBuf[64];

    uint32_t bufIdx = 0;

    crya_sha256_init(ctx);

    do
    {
        memcpy(dataBuf, &message[bufIdx], 64);

        crya_sha256_update(ctx, dataBuf, sizeof(dataBuf));
        bufIdx += 64;

    }while (bufIdx < APP_IMAGE_SIZE);

    crya_sha256_final(ctx, digest);
}

static bool non_secure_app_verify(void)
{
    sha256_hash(&sha256_ctx, appStart, APP_IMAGE_SIZE, firmware_digest_1);

    if(memcmp(dataStart, firmware_digest_1, 32) != 0)
    {
        printf("Firmware is Corrupted....!");
        printf("\n\r\n\r");

        printf("Firmware Digest after tamper detection:");
        printf("\n\r\n\r");

        for(int i=0; i<32; i++)
        {
            printf("0x%X ", dataStart[i]);

            if((i%8 == 0) && (i != 0))
            {
                printf("\n\r");
            }
        }
        flash_write(TZ_START_NS, (uint8_t *)&image_pattern, sizeof(image_pattern));

        sha256_hash(&sha256_ctx, image_pattern, APP_IMAGE_SIZE, firmware_digest_1);

        printf("\n\r\n\r");
        printf("Restored Firmware Digest:");
        printf("\n\r\n\r");

        for(int i=0; i<32; i++)
        {
            printf("0x%X ", firmware_digest_1[i]);

            if((i%8 == 0) && (i != 0))
            {
                printf("\n\r");
            }
        }
        printf("\n\r\n\r");
        printf("Genuine Firmware is restored");

    }
    else
    {
        return false;
    }

    return true;
}

Include the RTC Callback in the main.c for the tamper interrupt and 30-second timeout.

void timeout_handler(RTC_TIMER32_INT_MASK intCause, uintptr_t context)
{
    if(RTC_TIMER32_INT_MASK_CMP0  == (RTC_TIMER32_INT_MASK_CMP0 & intCause ))
    {
        if(non_secure_app_verify() == true)
        {
            SYSTICK_DelayMs(2000);

            NVIC_SystemReset();
        }
    }

    if (RTC_TIMER32_INT_MASK_TAMPER == (intCause & RTC_TIMER32_INT_MASK_TAMPER))
    {
        RTC_REGS->MODE2.RTC_TAMPID = RTC_TAMPID_Msk;

        printf("Software Attack Detected");
        printf("\n\r\n\r");
    }
}

Add the following code snippets after the SYS_Initialize API in the main.c.

sha256_hash(&sha256_ctx, image_pattern, APP_IMAGE_SIZE, firmware_digest_0);

flash_write(NVMCTRL_DATAFLASH_START_ADDRESS, firmware_digest_0, sizeof(firmware_digest_0));

Note:

sha256_hash: Calculates the digest of the Non-Secure Firmware.
flash_write: Stores the firmware digest in the Secure Data Flash region.

SYSTICK_TimerStart();

    RTC_Timer32CallbackRegister(timeout_handler,0);
    RTC_Timer32Start();
    printf("\n\r---------------------------------------------------------");
    printf("\n\r           Software Attack Protection Demo               ");
    printf("\n\r---------------------------------------------------------\n\r");

    if(non_secure_app_verify() != true)
    {
        printf("\n\rFirmware is Genuine");
        printf("\n\r\n\r");
    }

Note:

non_secure_app_verify: Verify the Non-Secure firmware and program the genuine copy in the Non-Secure Flash region if the verification fails.
