1.3.2 Perform Programmer Diagnostics Test

To perform the programmer diagnostics test, follow these steps:
  1. Connect the SS4 programmer to the PC using the USB cable.
    Note: Programmer must be powered-off during the next step.
  2. Connect the programmer power supply to SS4 programmer and power outlet.
  3. Install the latest version of the SculptW software on your computer if it is not already installed.
  4. Launch the SculptW software. Wait for the programmer to power-up. The programmer LEDs turns on for a brief amount of time while the software is being initialized, but the green LED light must stay on after the initialization process is completed. If the programmer does not power-up, close the software, check the USB and power connections, and try again.
  5. Without installing any programming adapter module on the SS4 programmer, go to Tools > Programmer Diagnostics and run the programmer diagnostics test.

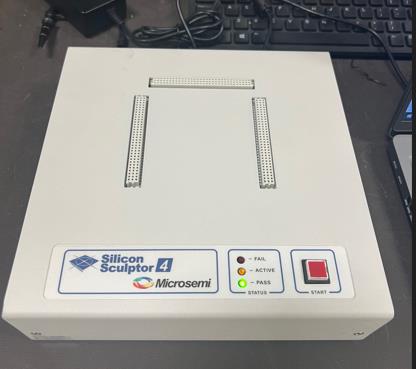

    Figure 1-2. SS4 Programmer

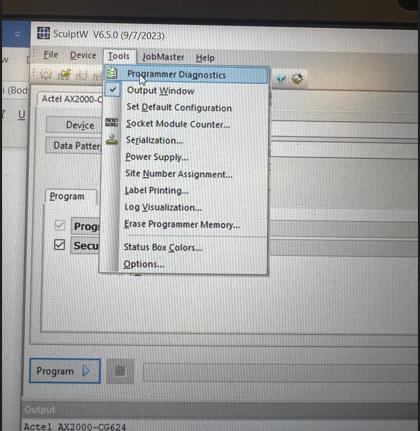

    Figure 1-3. Programmer Diagnostics Option
    Self Test Configuration pop-up appears.

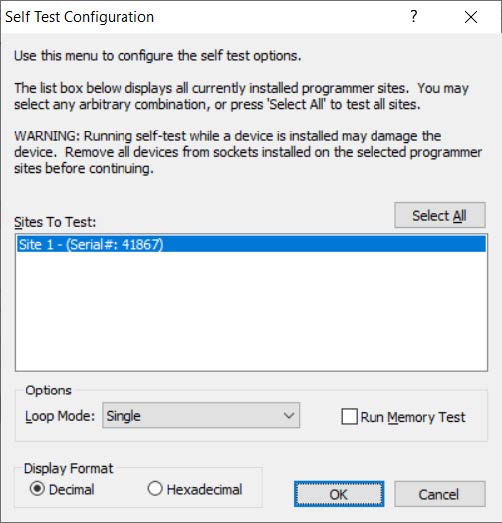

    Figure 1-4. Self Test Configuration Pop-up
  6. To continue, click OK and wait for the test to complete.
    Note: If you are programming an FPGA, repeat step 5 after attaching programming adapter module.
