2.7 Clock Configuration

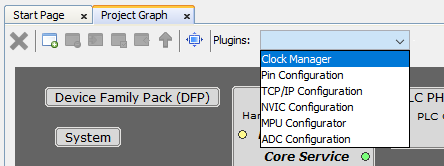

1. Start Clock Manager from Plugins drop-down menu.
Figure 2-47. Start Clock Manager

2. The application demo can work with default clock configuration

  • Verify that PLLACK0 is 20000000 Hz

  • Verify that PLLACK1 is 200000000 Hz

  • Verify that PLLABCK is 240000000 Hz

  • Verify that MCK0 is 200000000 Hz

  • Verify that MCK1 is 240000000 Hz

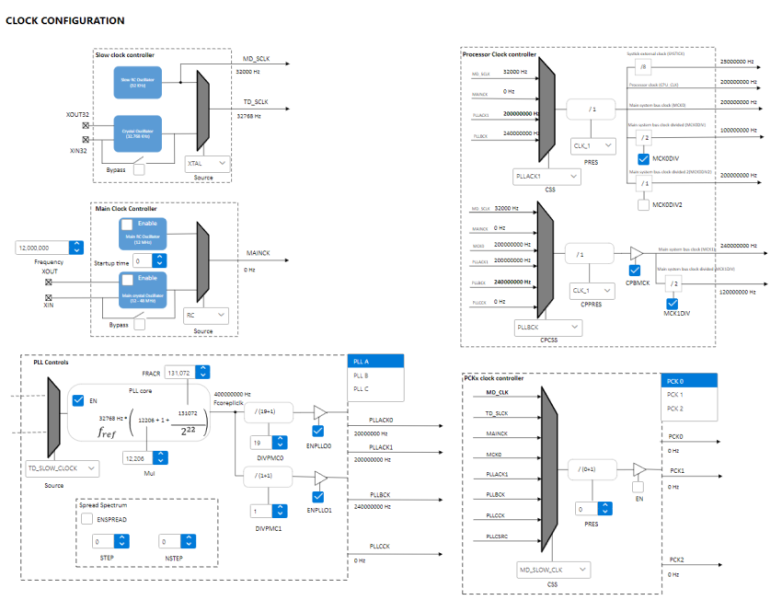

    Figure 2-48. Clock Configuration

Note: This setting is valid for PIC32CXMTG devices; other devices will have different clock settings. For more information, refer to the device datasheet.
