1.1.6 How to Enable Driven Shield

Note: Driven Shield is applicable only for self-capacitance sensors.

Steps to enable Driven Shield:

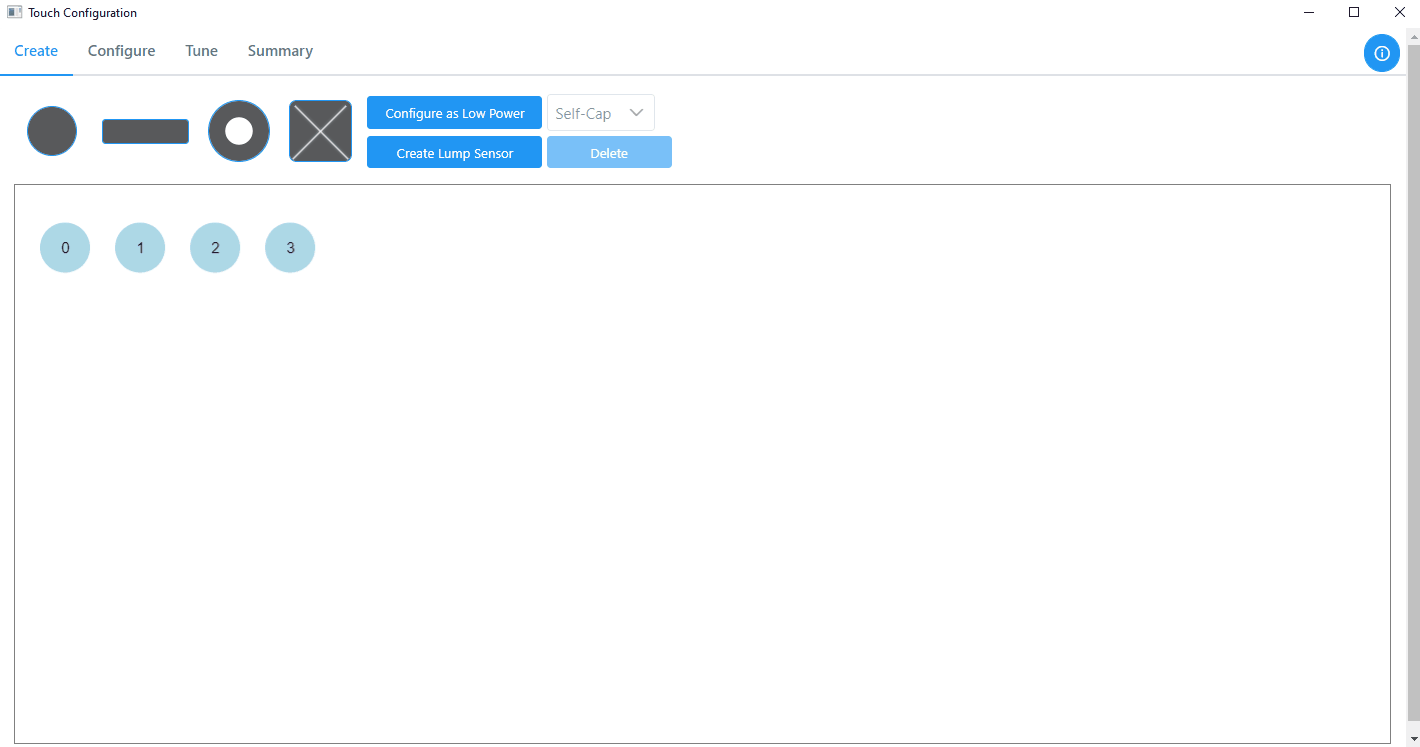

  • Include required Self-Capacitance Sensors
  • Go to Configure>Driven shield >Enable Driven Shield Plus and/or Enable Dedicated Shield Pin and select the corresponding pin
