3.4.1 Simulation

The following steps describe how to simulate the core using the testbench:

  1. Open Libero SoC, click Catalog tab, and then click Solutions-MotorControl.
  2. Double-click Encoder Interface and then click OK. The documentation associated with the IP are listed under Documentation.
    Important: If you do not see the Catalog tab, click View, open Windows menu, and then click Catalog to make it visible.

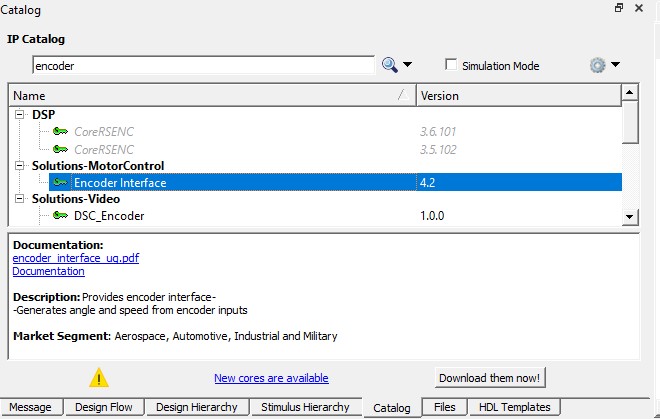

    Figure 3-7. Encoder Interface IP Core in Libero SoC Catalog
  3. On the Stimulus Hierarchy tab, click the testbench (encoder_interface_tb.v), point to Simulate Pre-Synth Design, and then click Open Interactively.
    Important: If you do not see the Stimulus Hierarchy tab, click View, open Windows menu, and then click Stimulus Hierarchy to make it visible.

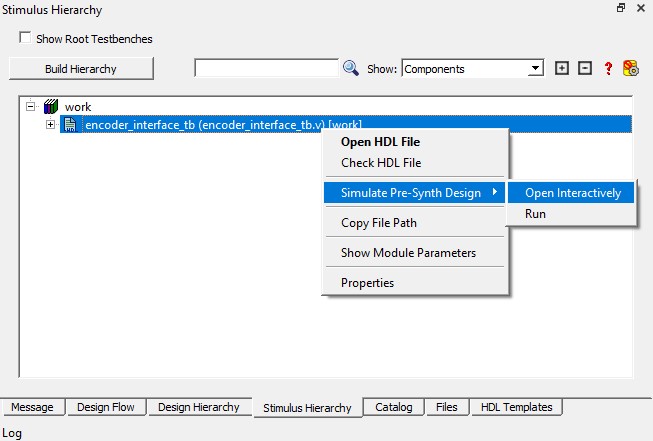

    Figure 3-8. Simulating Pre-Synthesis Design

    ModelSim opens with the testbench file as shown in the following figure.

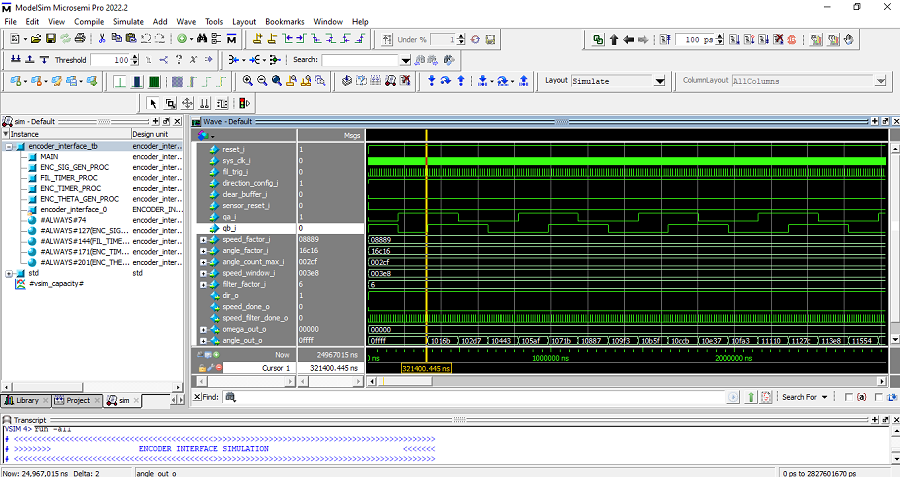

    Figure 3-9. ModelSim Simulation Window
Important: If the simulation is interrupted due to the runtime limit specified in the .do file, use the run -all command to complete the simulation.
