7 Sample Electrical Waveforms (For Reference Only)

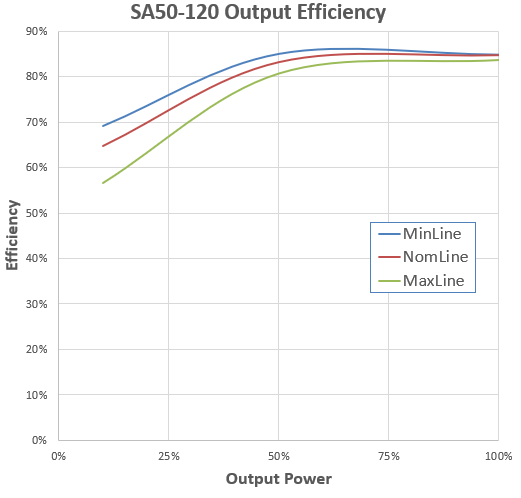

Figure 7-1. SA50-120 Output Efficiency

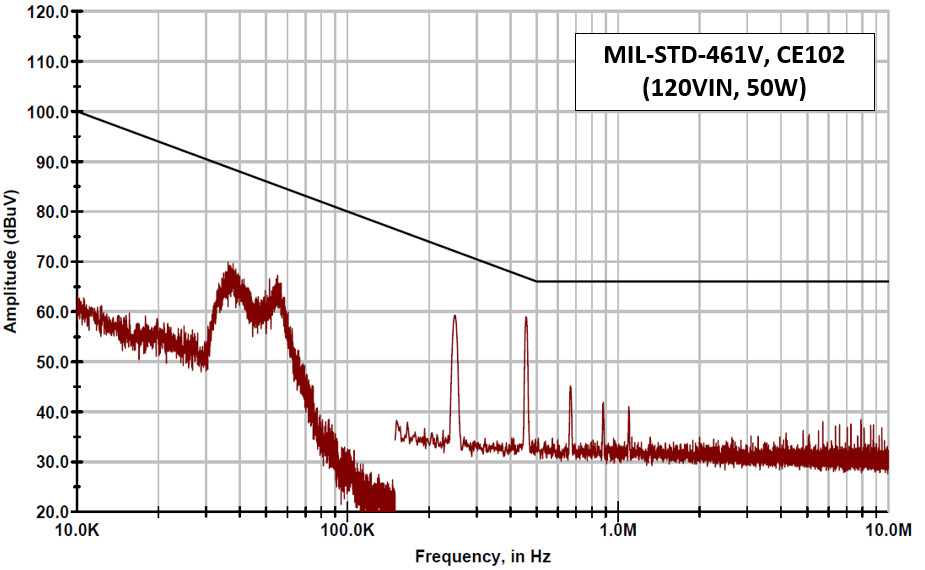

Figure 7-2. SA50-120 EMI Characterization

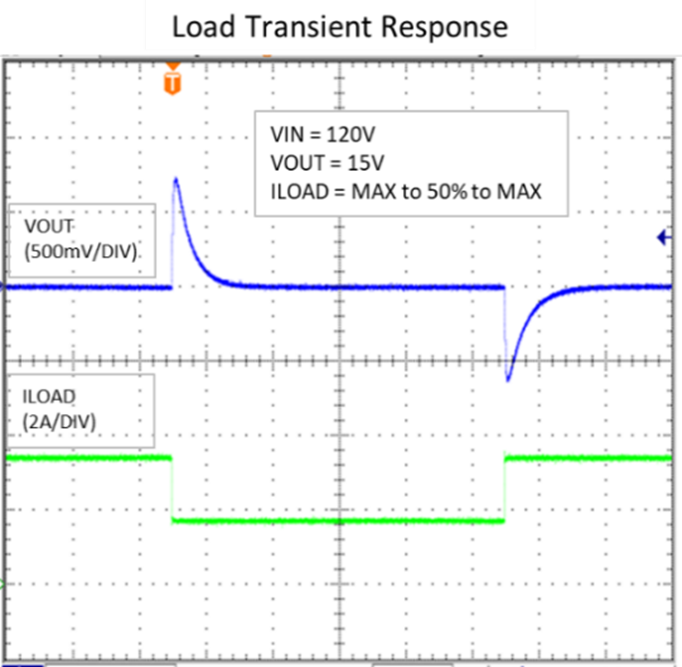

Figure 7-3. Load Transient Response

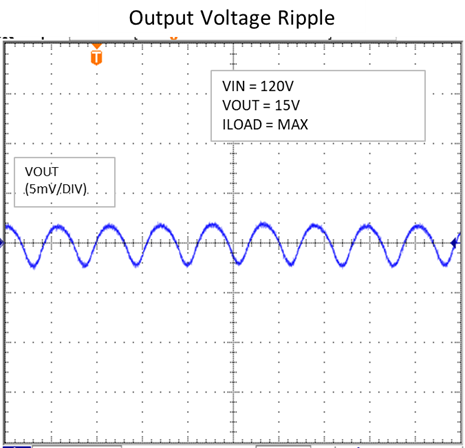

Figure 7-4. Output Voltage Ripple
