3 Typical Applications Circuits

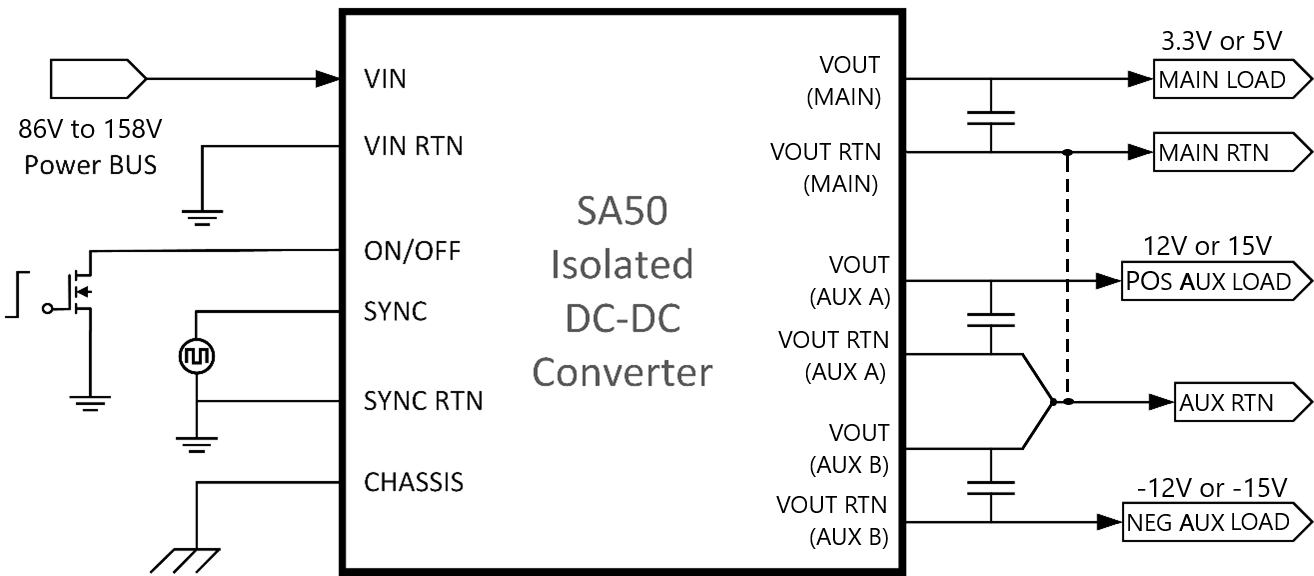

Figure 3-1. SA50-120 Triple Typical Application Circuit

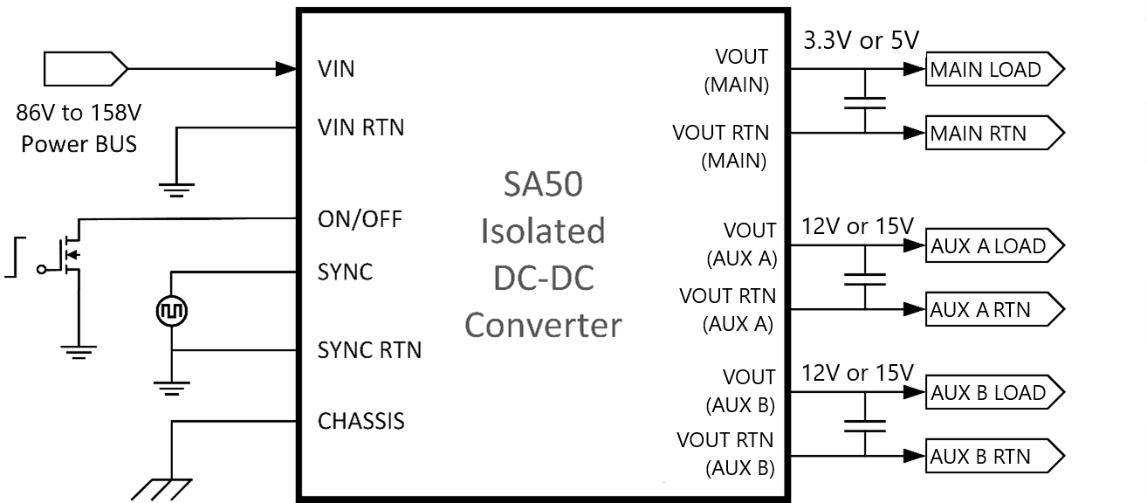

Figure 3-2. SA50-120 Triple AUX Outputs Parallel Application Circuit

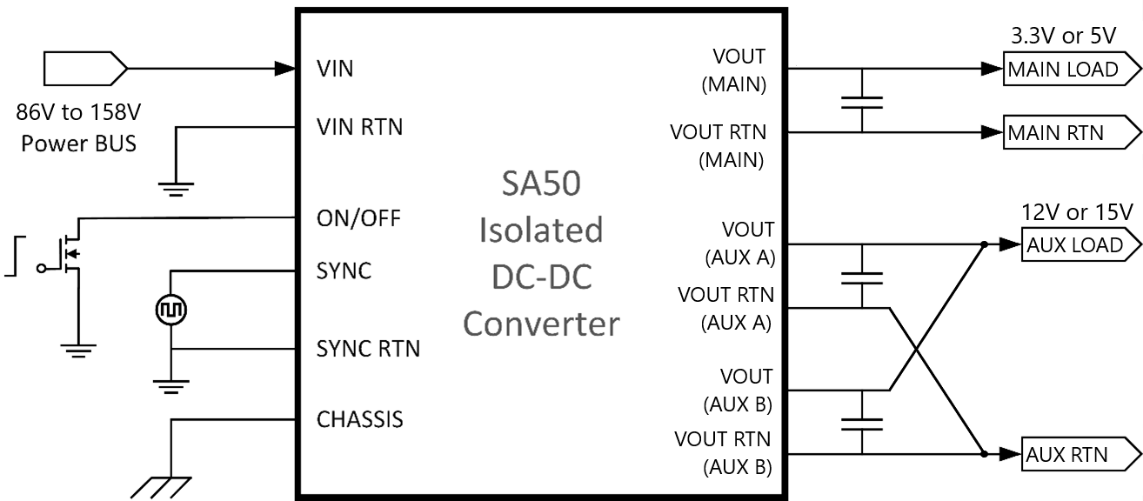

Figure 3-3. SA50-120 Triple AUX Split Outputs Application Circuit

Note: With each output of the SA50-120 isolated from each other, there are more possible connections. These are circuits that will be found in typical applications.
