4 Timing Diagrams

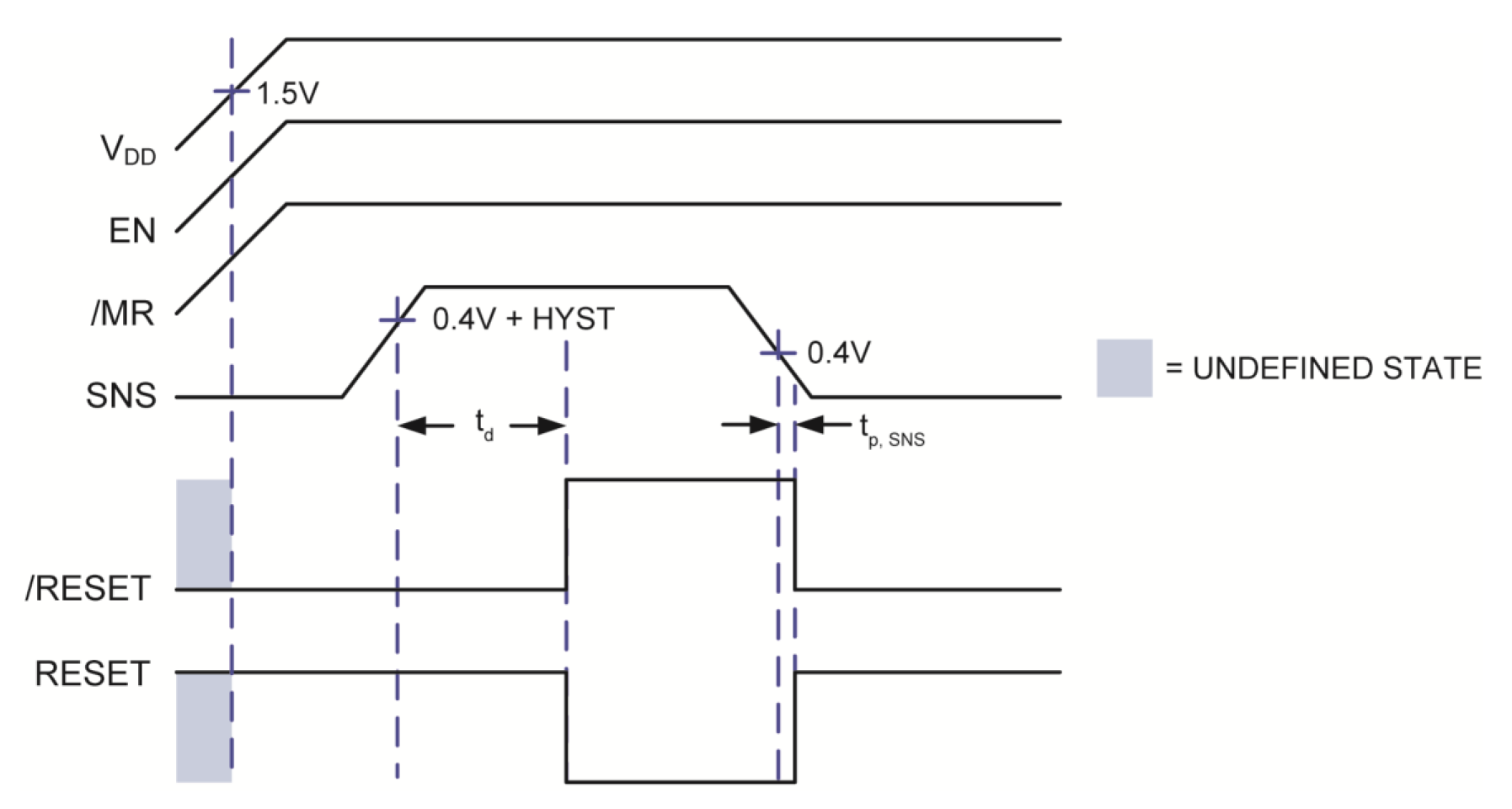

Figure 4-1. Timeout and Propagation Delay from SNS to RESET and /RESET

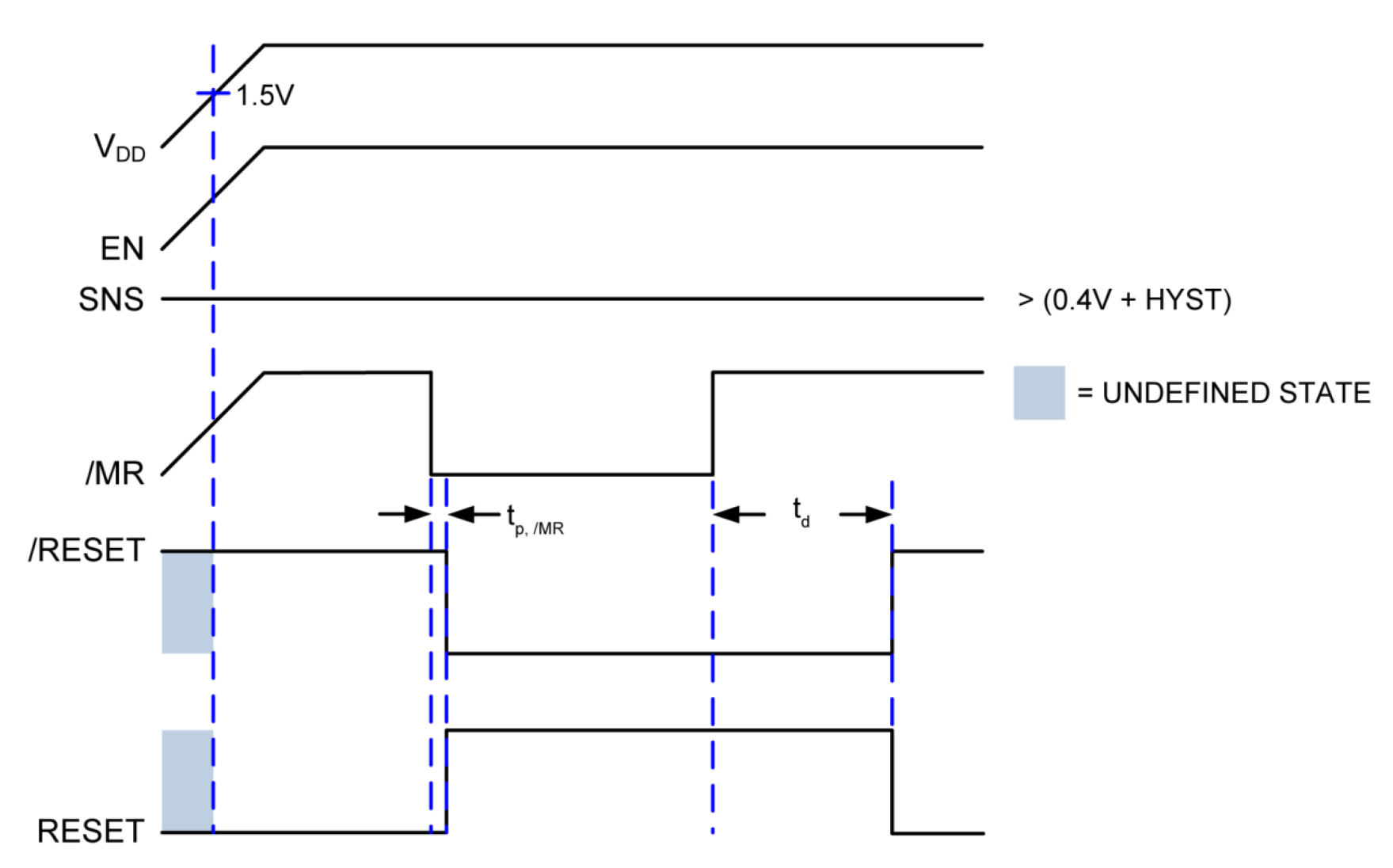

Figure 4-2. Timeout and Propagation Delay from /MR to RESET and /RESET

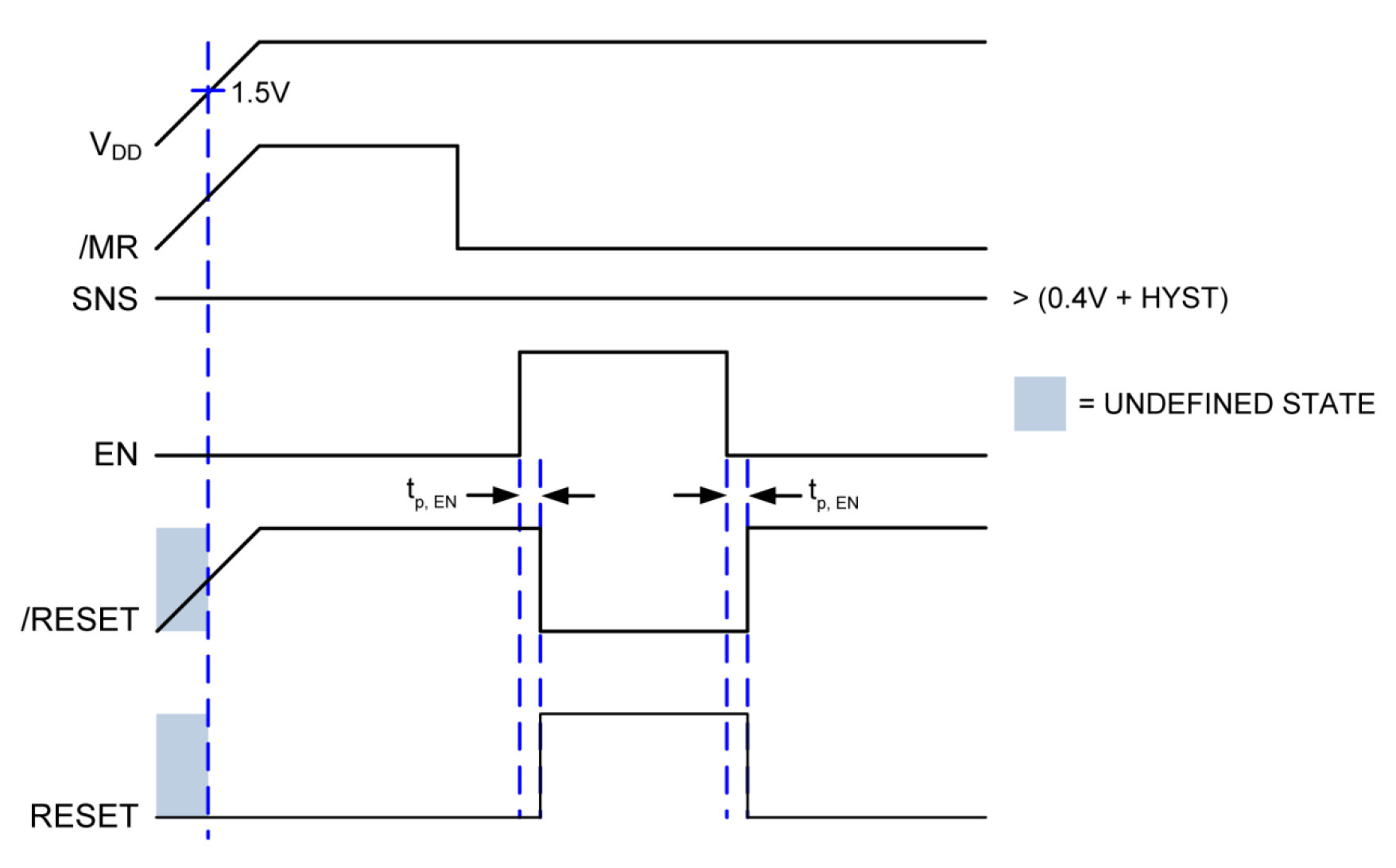

Figure 4-3. Hold and Propagation Delay from EN to RESET and /RESET
