3 Typical Operating Characteristics

Note: The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

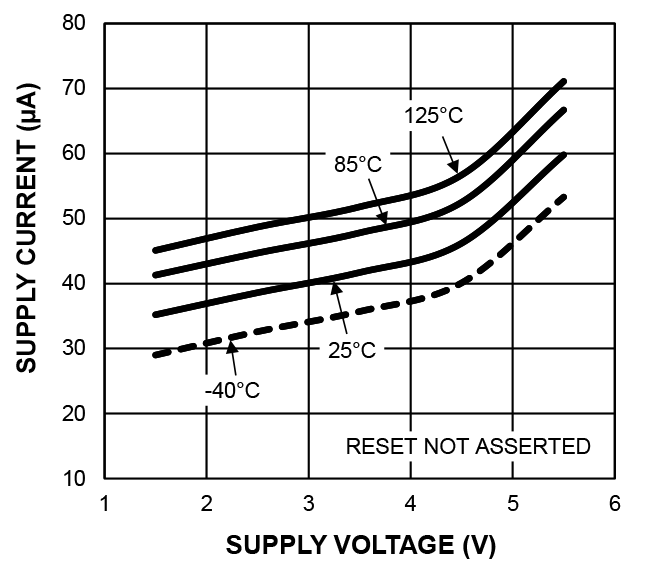

Figure 3-1. Supply Current vs. Supply Voltage

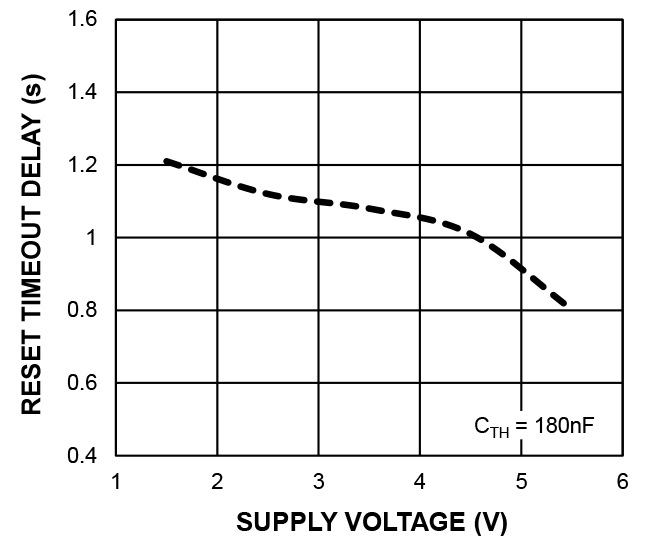

Figure 3-2. Reset Timeout Delay vs. Supply Voltage

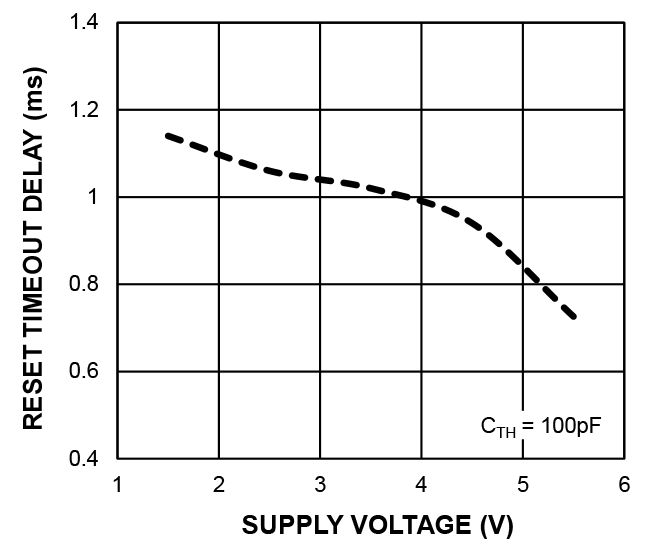

Figure 3-3. Reset Timeout Delay vs. Supply Voltage

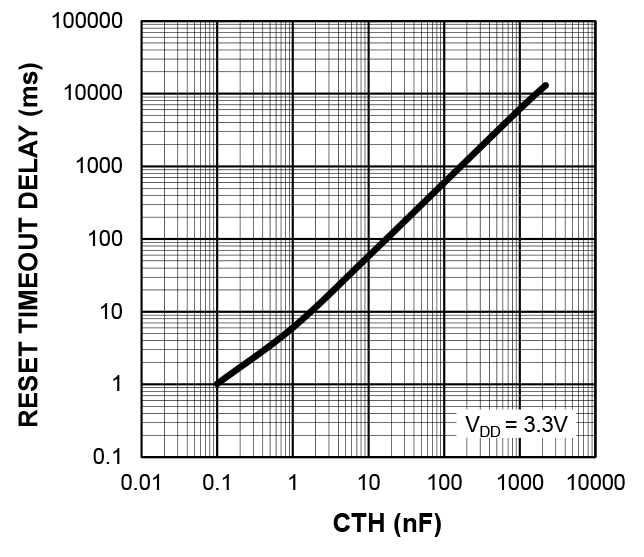

Figure 3-4. Reset Timeout Delay vs. CTH

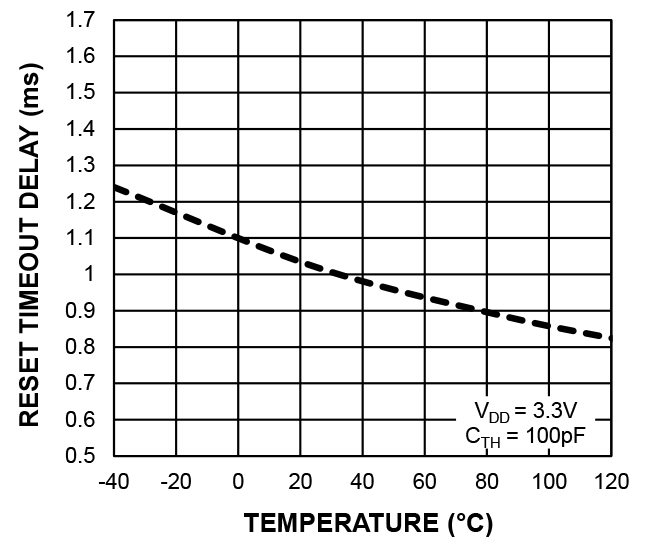

Figure 3-5. Reset Timeout Delay vs. Temperature

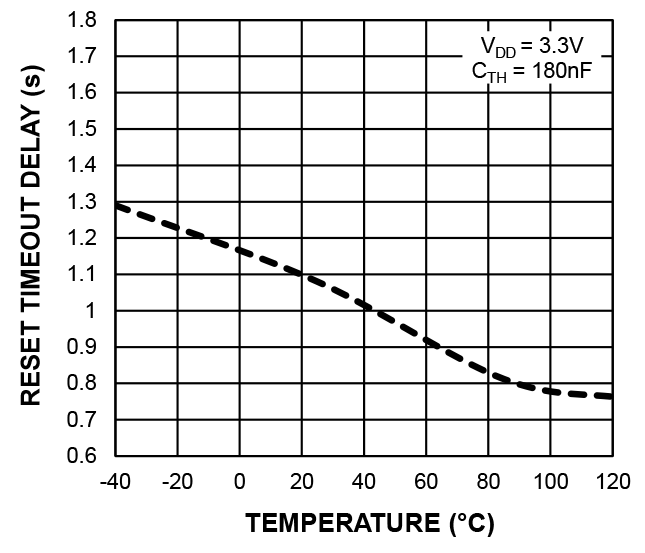

Figure 3-6. Reset Timeout Delay vs. Temperature

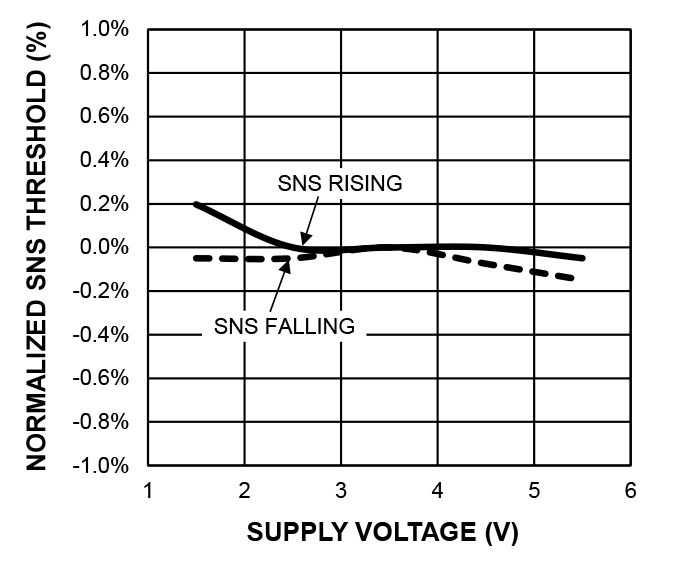

Figure 3-7. Normalized SNS Threshold vs. Supply Voltage

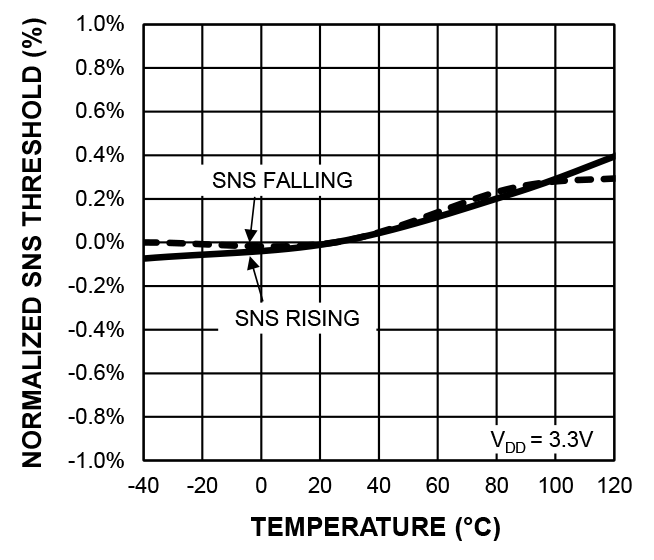

Figure 3-8. Normalized SNS Threshold vs. Temperature

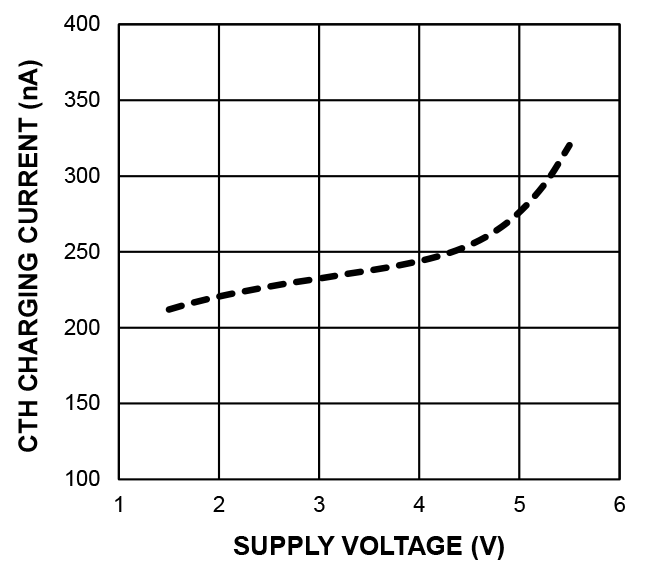

Figure 3-9. CTH Charging Current vs. Supply Voltage

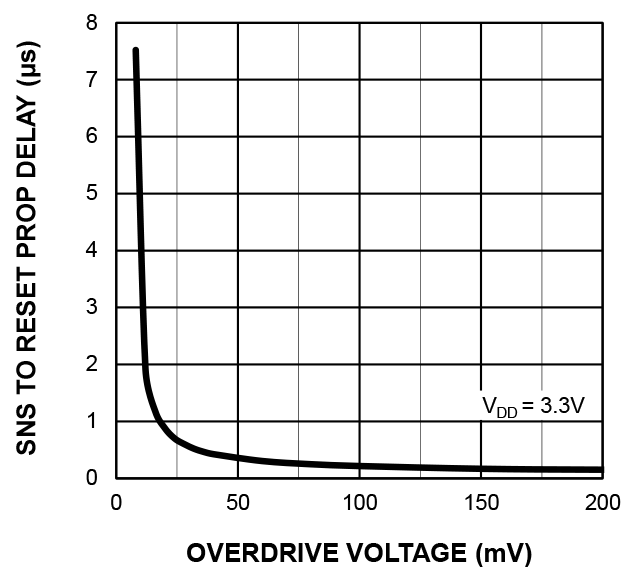

Figure 3-10. SNS to RESET Propagation Delay vs. Overdrive Voltage
