4.3.3 Variable Streamers Tab

Click the Variable Streamers tab to create, edit or delete variable streamers. Import Variable Streamer is a way to import .ds or .txt files that were used by the Atmel Studio Data Visualizer. More details on file format can be found in this document: ww1.microchip.com/downloads/aemDocuments/documents/OTH/ProductDocuments/UserGuides/40001903B.pdf

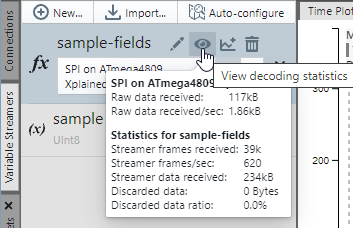

To view decoding statistics, streaming data information in real-time, click on the eye icon.

When there are variables in a data stream, the stream must be decoded before the variables can be visualized. For details, see Variable Streamers.


Figure 4-28. Variable Streamers Tab	Figure 4-29. View Decoding Statistics
