3.8 Incomplete Log Data Warning

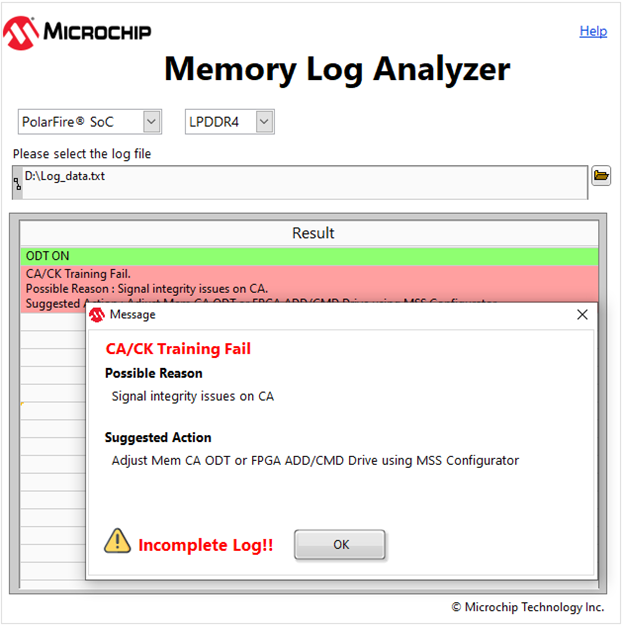

Warning: An Incomplete Log warning message appears as shown in Figure 3-28 and Figure 3-29 if incomplete log is provided to the Analyzer. Analyzer reports failure based on the data in the log file.
Figure 3-28. Incomplete Log

Figure 3-29. Incomplete Log

Workaround: To avoid the Incomplete Log warning, log file must start with Start Training or Retry Count and ends with DDR_TRAINING_PASS or DDR_TRAINING_FAIL.

 Start training. TIP_CFG_PARAMS:07CFE02F
 dpc_bits: 00050422

 CFG_DDR_SGMII_PHY->rpc156.rpc156 = 00000006


 00000000	 00000019	 00000000	 00000000	 00000000	 00000004
 00000001	 00000010	 00000000	 00000000	 00000000	 00000008
 00000002	 00000013	 00000000	 00000000	 00000000	 0000000A
 00000003	 00000017	 00000000	 00000000	 00000000	 00000004

 DDR_TRAINING_PASS:

 Retry Count: 00000007
 dpc_bits: 00050422

 CFG_DDR_SGMII_PHY->rpc156.rpc156 = 00000010


 00000000       00000013       00000000       00000000       00000000       00000000
 00000001       00000015       00000000       00000000       00000000       00000000
 00000002       00000017       00000000       00000000       00000000       00000000
 00000003       00000000       00000000       00000000       00000000       00000000
 ****************************************************00000000

 DDR_TRAINING_FAIL: 00000001
