2.1.10 Build and Program

The demo project will be compiled and programmed to both PIC32CXMTG-EK boards.

  1. Build the application.

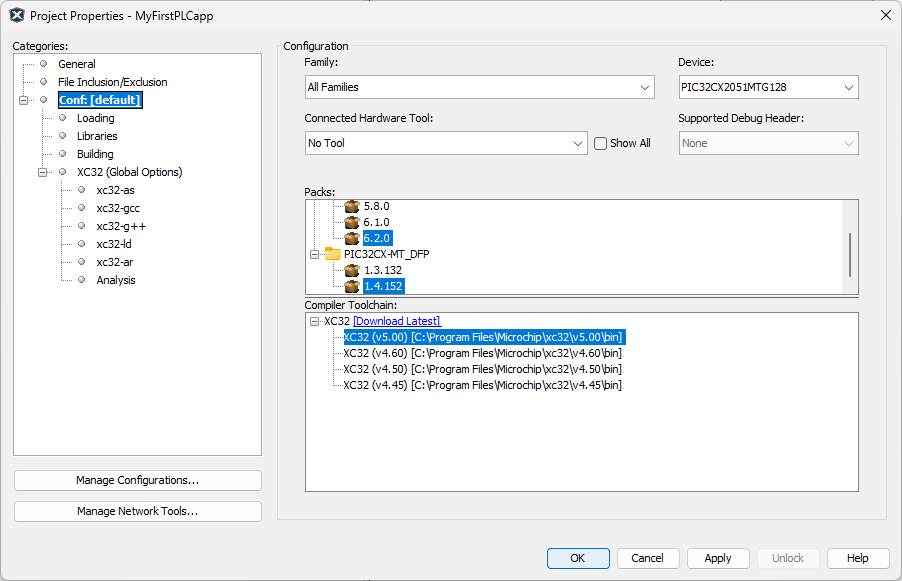

    1. Open the project Properties by right clicking on the project name (pic32cxmtg).
    2. Ensure that XC32 compiler toolchain is selected. Press OK.
      Figure 2-29. Select Compiler

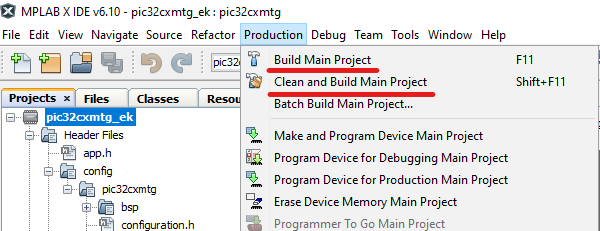

  2. Build the application by clicking on the Build Main Project or Clean and Build Main Project menu command.
    Figure 2-30. Build Project

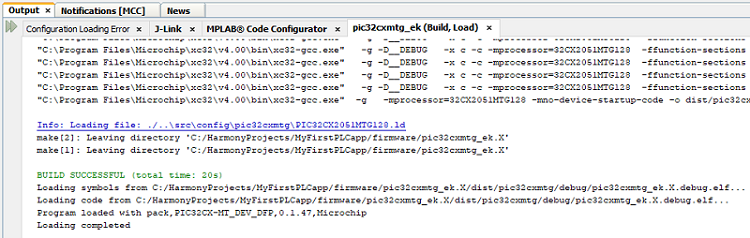

  3. Verify the build is SUCCESSFUL in Output window.
    Figure 2-31. Successful Build
  4. Program the application.
    1. Connect a micro-USB cable from computer to the USB port on the PIC32CXMTG-EK board.

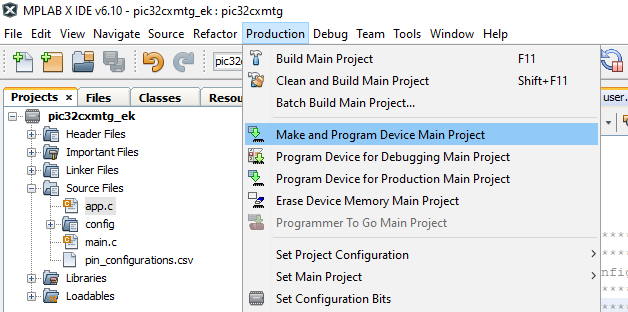

    2. Click on Make and Program Device Main Project menu command.
      Figure 2-32. Make And Program Device

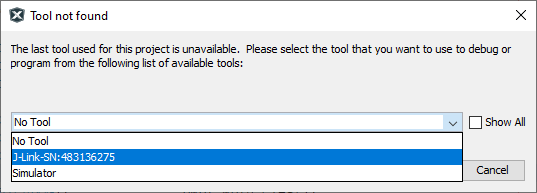

  5. If not already done, select the programming tool for the connected board.
    Figure 2-33. Select Programming Tool
  6. Repeat steps 4 and 5 for the second PIC32CXMTG-EK board.
