1.4.1 Clarke Transform

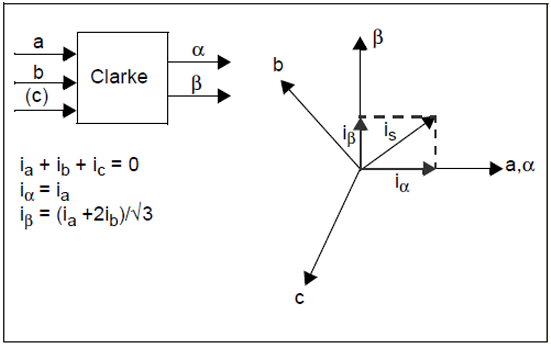

The first coordinate transform, called the Clarke Transform, moves a three-axis, two-dimensional coordinate system, referenced to the stator, onto a two-axis system, keeping the same reference (see the following figure, where i_a, i_b and i_c are the individual phase currents).
