3.1.4.2 Start RX with MAC Filter Selection

The following table provides the command syntax for RX test with MAC filter selection.

Table 3-8. Start RX with MAC Filter selection: After Initialization
Command Syntax MCHPRT X Y Z A
X X refers to RX mode:
  • 2_DA – Destination Filter
  • 2_SA – Source Filter
  • 2_Self – Override self MAC address
  • 2_SA_DA – SA with DA
  • 2_Self_DA – Self with DA
  • 2_SA_Self – SA with Self
  • 2_SA_Self_DA – All MAC filter apply
Y Y refers to TX channel: 1 to 14
  • 1 – Channel 1 (2412 MHz)
  • 6 – Channel 6 (2437 MHz)
  • 14 – Channel 14 (2484 MHz)
Z

In 2_SA, 2_SA_DA, 2_SA_Self, 2_SA_Self_DA

Source MAC address

In 2_Self, 2_Self_DA

Self MAC address
A

In 2_SA_Self_DA

Self MAC address
Example

MCHPRT 2_SA_Self_DA 1 112233445566 665544332211

RX with Source MAC filter: 112233445566 and DA MAC filter and Self MAC address: 665544332211 in Channel 1 Start with reset the count

MCHPRT 2_SA_DA 12 112233445566

RX with Source MAC filter: 112233445566 in Channel 12 Start with reset the count

MCHPRT 2_Self_DA 13 665544332211

RX with DA MAC filter and Self MAC address: 665544332211 in Channel 13 Start with reset the count

The following figure shows the example of RX with Source MAC filter: 112233445566 and DA MAC filter and Self MAC address: 665544332211 in Channel 1 Start with reset the count.

Figure 3-10. Console Log of RX with Source MAC Filter (Channel 1)

The following figure shows the example of RX with Source MAC filter: 112233445566 in Channel 12 Start with reset the count.

Figure 3-11. Console Log of RX with Source MAC Filter (Channel 12)

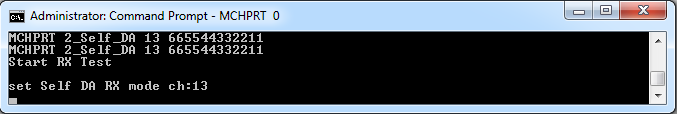

The following figure shows the example of RX with DA MAC filter and Self MAC address: 665544332211 in Channel 13 Start with reset the count.

Figure 3-12. Console Log of RX with Source MAC Filter (Channel 13)
