3.1.4.1 Start RX

The following table provides the command syntax for RX test.

Table 3-7. Start RX: After Initialization
Command Syntax MCHPRT 2 X
X X refers to TX channel: 1 to 14
  • 1 – Channel 1 (2412 MHz)
  • 6 – Channel 6 (2437 MHz)
  • 14 – Channel 14 (2484 MHz)
Example MCHPRT 2 1

RX mode in Channel 1 Start with reset the count

The following figure shows the example of start RX test.

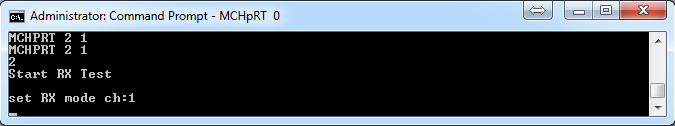

Figure 3-9. Console Log of RX Test Mode
