5.2.1 HCI TX

Perform the following steps for TX.

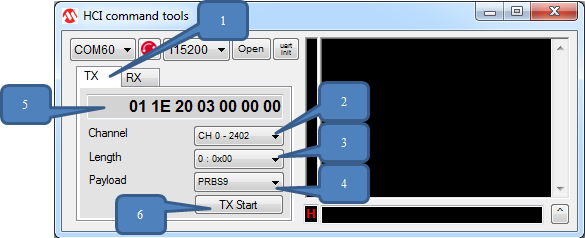

  1. After successful initialization, select the TX tab to change to TX HCI command.
  2. Select the Channel.
  3. Select the Length.
  4. Select the Payload.
  5. Then the HCI command is shown in the TX command box.
  6. Click TX Start to send the TX HCI command.
    Figure 5-5. Start TX

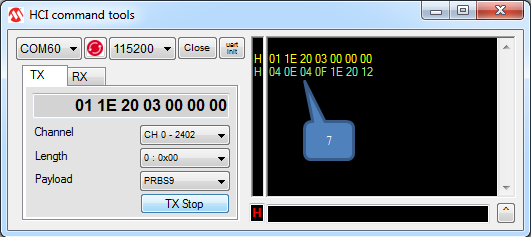

  7. The sent and received HCI command is shown in the log. Yellow represents the sent command [Hex] and Green represents the received command [Hex].
    Figure 5-6. Sent/Received HCI Command

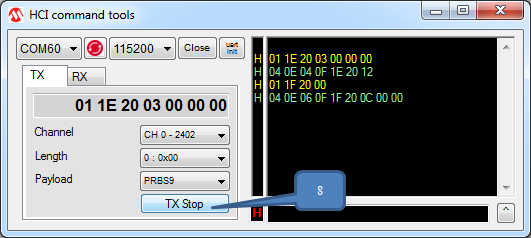

  8. Click TX Stop to send TX stop command.
    Figure 5-7. Stop TX
