9.7 XCVR View

The XCVR View allows the user to make assignments for Transceiver Lanes, Reference Clocks and Transmit PLLs. It presents the following views:

  • A schematic view of the Reference Clock (REFCLK), the TransmitPLL, and the Transceiver Lanes they drive. See Figure   1.
  • A graphical placement view of the REFCLK, its connection from the PADS, to the TransmitPLL, to the Transceiver Lanes. See Figure   2.
  • A Signal Integrity View for a Transceiver Lane, showing TX Emphasis Amplitude, TX Impedance, TX Transmit Common Mode Adjustment, RX and TX Polarity, RX Insertion Loss, RX CTLE, RX Termination, RX P/N Board Connection, and RX Loss of Signal Detector (Low and High). See Figure   3.

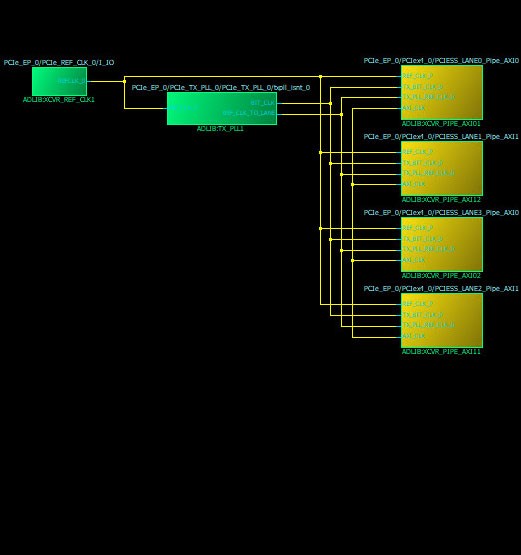

    Figure 9-12. XCVR Interface—Schematic View

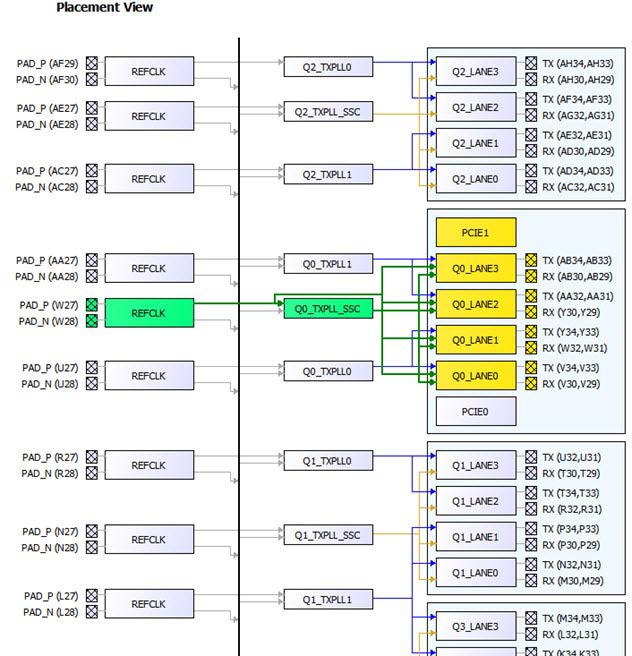

    Figure 9-13. XCVR Interface—Graphical Placement View

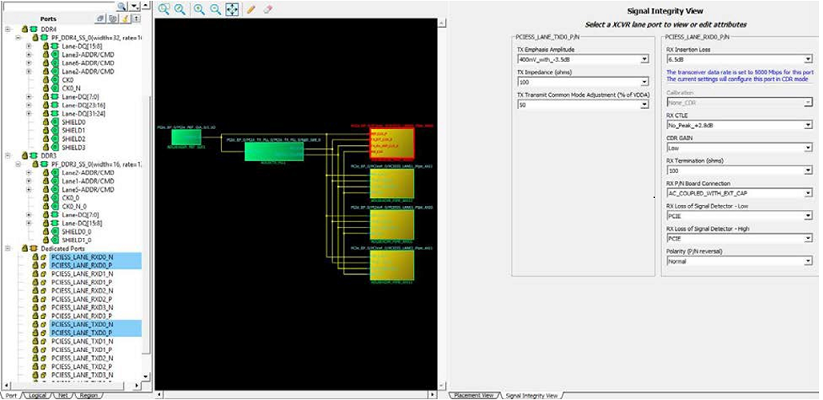

    Figure 9-14. I/O Editor—XCVR View—Signal Integrity View

The Signal Integrity View for a Transceiver Lane shows the following:

  • TX Emphasis Amplitude
  • TX Impedance
  • TX Transmit Common Mode Adjustment
  • RX and TX Polarity, RX Insertion Loss, RX CTLE
  • RX Termination
  • RX P/N Board Connection
  • RX Loss of Signal Detector (Low, High, Calibration, and CDR Gain)
