1.3.3.1 High Voltage Test

To perform high voltage test, follow these steps:
  1. Measure the voltage of pin 1, see the following figure. Voltage reading must be within the specified range. Otherwise, the programmer is out of calibration and needs servicing.

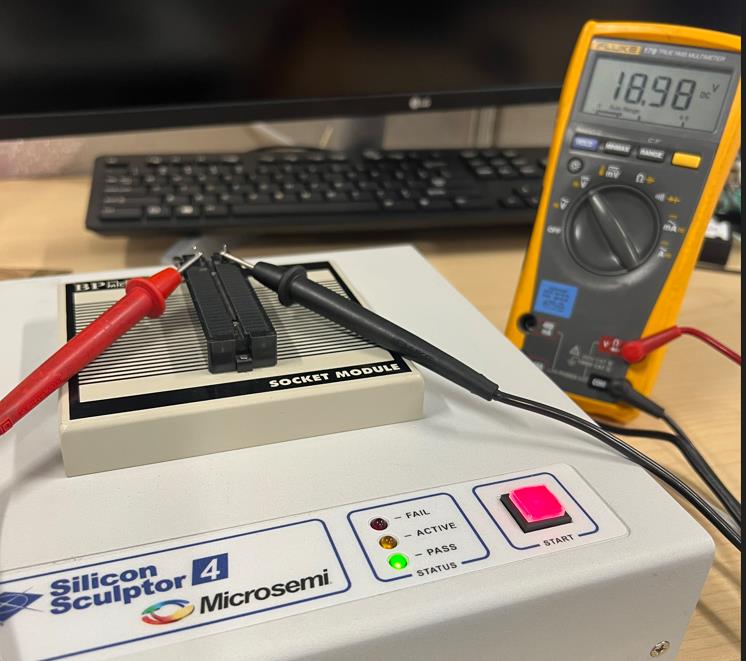

    Figure 1-9. Measuring the Voltage of Pin 1

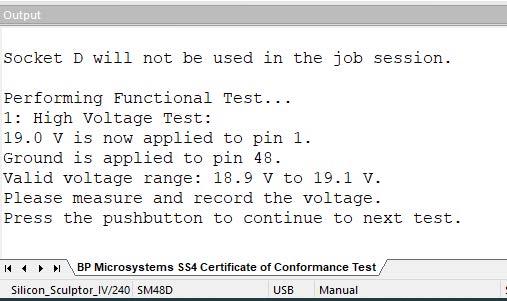

    The following figure shows the allowable range of the high voltage test.
    Figure 1-10. Test Output—High Voltage Test
  2. To proceed to the next test, on the SS4 programmer, press the START push button.
