4.3 64-pin VQFN and 64-pin TQFP

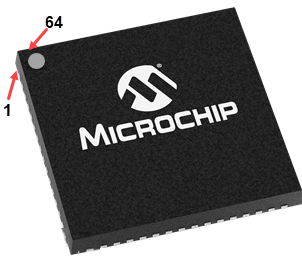

64-PIN VQFN and TQFP (Top View)⁽¹⁾
PIC32CM2532(LE00/LS00)064 PIC32CM5164(LE00/LS00/LS60)064

Note:

The 64-pin VQFN package is with wettable flanks.

Table 4-3. 64-pin VQFN/64-pin TQFP PINMUX
Pin	Pin Name	A	B^(1,3)						C^(4,5)		D^(4,5)		E⁽²⁾	G	H	I	J⁽²⁾	K		Power Rail	Reset State
VQFN64 / TQFP64	Pin Name	EIC	REF	ADC	AC	PTC	DAC	OPAMP	SERCOM	IOSET	SERCOM ALT	IOSET	TC / TCC	RTC / USB / Debug	AC / GCLK	CCL	TCC	I2S	IOSET	Power Rail	Reset State
1	PA00 / XIN32	EXTINT[0]				XY[0]		OANEG[1]			SERCOM1/ PAD[0]	6	TCC2/WO[0]							AVDD	I/O, Hi-Z
2	PA01 / XOUT32	EXTINT[1]				XY[1]		OAPOS[1]			SERCOM1/ PAD[1]	6	TCC2/WO[1]							AVDD	I/O, Hi-Z
3	PA02⁽³⁾⁽⁶⁾	EXTINT[2]		AIN[0]		XY[2]	VOUT0	OANEG[0]			SERCOM0/ PAD[2]	3					TCC3/WO[0]			AVDD	I/O, Hi-Z
4	PA03	EXTINT[3]	VREFA	AIN[1]		XY[3]		OANEG[2]			SERCOM0/ PAD[3]	3					TCC3/WO[1]			AVDD	I/O, Hi-Z
5	PB04	EXTINT[4]		AIN[12]	AIN[6]	XY[26]		OAOUT[1]												AVDD	I/O, Hi-Z
6	PB05	EXTINT[5]		AIN[13]	AIN[7]	XY[27]														AVDD	I/O, Hi-Z
7	AVSS
8	AVDD
9	PB06	EXTINT[6]		AIN[14]		XY[28]										IN[6]				AVDD	I/O, Hi-Z
10	PB07	EXTINT[7]		AIN[15]		XY[29]										IN[7]				AVDD	I/O, Hi-Z
11	PB08	EXTINT[8]		AIN[18]		XY[20]					SERCOM3/ PAD[0]	4	TC0/WO[0]			IN[8]	TCC3/WO[6]			AVDD	I/O, Hi-Z
12	PB09	EXTINT[9]		AIN[19]		XY[21]					SERCOM3/ PAD[1]	4	TC0/WO[1]			OUT[2]	TCC3/WO[7]			AVDD	I/O, Hi-Z
13	PA04	EXTINT[4]	VREFB	AIN[2]	AIN[0]			OAOUT[2]			SERCOM0/ PAD[0]	3	TCC0/WO[0]			IN[0]	TCC3/WO[2]			AVDD	I/O, Hi-Z
14	PA05	EXTINT[5]		AIN[3]	AIN[1]	XY[4]		OAPOS[2]			SERCOM0/ PAD[1]	3	TCC0/WO[1]			IN[1]	TCC3/WO[3]			AVDD	I/O, Hi-Z
15	PA06	EXTINT[6]		AIN[4]	AIN[2]	XY[5]		OAPOS[0]			SERCOM0/ PAD[2]	3	TCC1/WO[0]			IN[2]	TCC3/WO[4]			AVDD	I/O, Hi-Z
16	PA07⁽³⁾	EXTINT[7]		AIN[5]	AIN[3]		VOUT1	OAOUT[0]			SERCOM0/ PAD[3]	3	TCC1/WO[1]			OUT[0]	TCC3/WO[5]			AVDD	I/O, Hi-Z
17	PA08	NMI		AIN[6]		XY[6]			SERCOM1/ PAD[0]	1	SERCOM2/ PAD[0]	2	TCC0/WO[0]	RTC/IN[0]		IN[3]	TCC1/WO[2]	SDI	1	VDD	I/O, Hi-Z
18	PA09	EXTINT[0]		AIN[7]		XY[7]			SERCOM1/ PAD[1]	1	SERCOM2/ PAD[1]	2	TCC0/WO[1]	RTC/IN[1]		IN[4]	TCC1/WO[3]	MCK[0]	1,2	VDD	I/O, Hi-Z
19	PA10	EXTINT[1]		AIN[8]		XY[8]			SERCOM1/ PAD[2]	1, 6	SERCOM2/ PAD[2]	2	TCC1/WO[0]		GCLK/IO[4]	IN[5]	TCC0/WO[2]	SCK[0]	1	VDD	I/O, Hi-Z
20	PA11	EXTINT[2]		AIN[9]		XY[9]			SERCOM1/ PAD[3]	1, 6	SERCOM2/ PAD[3]	2	TCC1/WO[1]		GCLK/IO[3]	OUT[1]	TCC0/WO[3]	FS[0]	2	VDD	I/O, Hi-Z
21	AVSSPLL
22	VDD
23	VSS
24	VDDPLL
25	PB12	EXTINT[12]				XY[30]			SERCOM3/ PAD[0]	1			TC0/WO[0]		GCLK/IO[6]		TCC0/WO[6]	FS[1]	1,2	VDD	I/O, Hi-Z
26	PB13	EXTINT[13]				XY[31]			SERCOM3/ PAD[1]	1			TC0/WO[1]		GCLK/IO[7]		TCC0/WO[7]	MCK[1]	1,2	VDD	I/O, Hi-Z
27	PB14	EXTINT[14]							SERCOM3/ PAD[2]	1, 4			TC1/WO[0]	RTC/IN[4]	GCLK/IO[0]	IN[9]				VDD	I/O, Hi-Z
28	PB15	EXTINT[15]							SERCOM3/ PAD[3]	1, 4			TC1/WO[1]	RTC/IN[5]	GCLK/IO[1]	IN[10]				VDD	I/O, Hi-Z
29	PA12	EXTINT[12]				XY[24]			SERCOM2/ PAD[0]	1	SERCOM4/ PAD[0]	2	TCC2/WO[0]		AC/CMP[0]		TCC0/WO[6]			VDD	I/O, Hi-Z
30	PA13	EXTINT[13]				XY[25]			SERCOM2/ PAD[1]	1	SERCOM4/ PAD[1]	2	TCC2/WO[1]		AC/CMP[1]		TCC0/WO[7]			VDD	I/O, Hi-Z
31	PA14 / XIN	EXTINT[3]				XY[10]			SERCOM2/ PAD[2]	1	SERCOM0/ PAD[2]	4	TC0/WO[0]		GCLK/IO[0]		TCC0/WO[4]			VDD	I/O, Hi-Z
32	PA15 / XOUT	EXTINT[4]				XY[11]			SERCOM2/ PAD[3]	1	SERCOM0/ PAD[3]	4	TC0/WO[1]		GCLK/IO[1]		TCC0/WO[5]			VDD	I/O, Hi-Z
33	VSS
34	VDD
35	PA16	EXTINT[5]				XY[12]			SERCOM1/ PAD[0]	3	SERCOM0/ PAD[0]	4	TCC2/WO[0]	RTC/IN[2]	GCLK/IO[2]	IN[0]	TCC0/WO[6]			VDD	I/O, Hi-Z
36	PA17	EXTINT[6]				XY[13]			SERCOM1/ PAD[1]	3	SERCOM0/ PAD[1]	4	TCC2/WO[1]	RTC/IN[3]	GCLK/IO[3]	IN[1]	TCC0/WO[7]			VDD	I/O, Hi-Z
37	PA18	EXTINT[7]				XY[14]			SERCOM1/ PAD[2]	3	SERCOM0/ PAD[2]	4	TC2/WO[0]	RTC/OUT[0]	AC/CMP[0]	IN[2]	TCC0/WO[2]	FS[0]	1	VDD	I/O, Hi-Z
38	PA19	EXTINT[0]				XY[15]			SERCOM1/ PAD[3]	3	SERCOM0/ PAD[3]	4	TC2/WO[1]	RTC/OUT[1]	AC/CMP[1]	OUT[0]	TCC0/WO[3]	SDO	1,2	VDD	I/O, Hi-Z
39	PB16	EXTINT[0]							SERCOM5/ PAD[0]	1			TC2/WO[0]	RTC/OUT[4]	GCLK/IO[2]	IN[11]	TCC0/WO[4]	SDI	2	VDD	I/O, Hi-Z
40	PB17	EXTINT[1]							SERCOM5/ PAD[1]	1			TC2/WO[1]	RTC/OUT[5]	GCLK/IO[3]	OUT[3]	TCC0/WO[5]			VDD	I/O, Hi-Z
41	PA20	EXTINT[4]				XY[22]			SERCOM3/ PAD[2]	3	SERCOM2/ PAD[2]	3	TC1/WO[0]		GCLK/IO[4]	IN[5]	TCC0/WO[6]	SCK[0]	2	VDD	I/O, Hi-Z
42	PA21	EXTINT[5]				XY[23]			SERCOM3/ PAD[3]	3	SERCOM2/ PAD[3]	3			GCLK/IO[5]		TCC0/WO[7]	SCK[1]	1,2	VDD	I/O, Hi-Z
43	PA22	EXTINT[1]				XY[16]			SERCOM0/ PAD[0]	1	SERCOM2/ PAD[0]	3	TC0/WO[0]	RTC/OUT[2]	GCLK/IO[2]	IN[6]	TCC0/WO[4]			VDD	I/O, Hi-Z
44	PA23	EXTINT[2]				XY[17]			SERCOM0/ PAD[1]	1	SERCOM2/ PAD[1]	3	TC0/WO[1]	RTC/OUT[3]	GCLK/IO[1]	IN[7]	TCC0/WO[5]			VDD	I/O, Hi-Z
45	PA24	EXTINT[3]							SERCOM0/ PAD[2]	1	SERCOM2/ PAD[2]	3	TC1/WO[0]	USB/DM	AC/CMP[2]	IN[8]	TCC1/WO[2]			VDD	I/O, Hi-Z
46	PA25	EXTINT[4]							SERCOM0/ PAD[3]	1	SERCOM2/ PAD[3]	3	TC1/WO[1]	USB/DP	AC/CMP[3]	OUT[2]	TCC1/WO[3]			VDD	I/O, Hi-Z
47	VSS
48	VDD
49	PB22	EXTINT[6]							SERCOM0/ PAD[2]	1	SERCOM5/ PAD[2]	4		USB/SOF_1KHZ	GCLK/IO[0]	IN[0]	TCC3/WO[0]			VDD	I/O, Hi-Z
50	PB23	EXTINT[7]							SERCOM0/ PAD[3]	1	SERCOM5/ PAD[3]	4			GCLK/IO[1]	OUT[0]	TCC3/WO[1]			VDD	I/O, Hi-Z
51	VSS
52	RESET																			VDD	I, PU
53	VDDCORE
54	VSSCORE
55	VDDOUT
56	VDD
57	PA30 / SWCLK	EXTINT[6]				XY[18]					SERCOM1/ PAD[2]	4	TCC1/WO[0]	SWCLK	GCLK/IO[0]	IN[3]	TCC3/WO[4]			VDD	SWCLK, I, PU
58	PA31 / SWDIO	EXTINT[7]				XY[19]					SERCOM1/ PAD[3]	4	TCC1/WO[1]			OUT[1]	TCC3/WO[5]			VDD	I/O, Hi-Z
59	PB30	EXTINT[14]							SERCOM1/ PAD[0]	4	SERCOM5/ PAD[0]	3	TCC0/WO[0]				TCC1/WO[2]			VDD	I/O, Hi-Z
60	PB31	EXTINT[15]							SERCOM1/ PAD[1]	4	SERCOM5/ PAD[1]	3	TCC0/WO[1]				TCC1/WO[3]			VDD	I/O, Hi-Z
61	PB00	EXTINT[0]		AIN[16]					SERCOM3/ PAD[2]	3	SERCOM5/ PAD[2]	3, 4				IN[1]				VDD	I/O, Hi-Z
62	PB01	EXTINT[1]		AIN[17]					SERCOM3/ PAD[3]	3	SERCOM5/ PAD[3]	3, 4				IN[2]				VDD	I/O, Hi-Z
63	PB02	EXTINT[2]		AIN[10]	AIN[4]				SERCOM3/ PAD[0]	3	SERCOM5/ PAD[0]	4	TC2/WO[0]			OUT[0]	TCC3/WO[2]			VDD	I/O, Hi-Z
64	PB03⁽⁶⁾	EXTINT[3]		AIN[11]	AIN[5]				SERCOM3/ PAD[1]	3	SERCOM5/ PAD[1]	4	TC2/WO[1]				TCC3/WO[3]			VDD	I/O, Hi-Z
Note: All analog pin functions are on the peripheral function B. The peripheral function B must be selected to disable the digital control of the pin. Refer to TCC peripheral chapter for the list of supported features for each peripheral instance. When DAC0 or DAC1 channel is enabled, respective VOUT0 (PA02) or VOUT1 (PA07) pins cannot be used for other purposes (excluding analog inputs). I²C is not supported on all SERCOM pins. Refer to SERCOM I²C peripheral chapter for the list of supported features for each peripheral instance. SERCOM1 signals are not available for the PIC32CM LS60 family as reserved for ATECC608B interconnection. The transition time of the following pins must be greater than 50μs in order to not affect the XOSC32 cycle to cycle jitter.
