1.4 Configuring Bitstream Components

To configure security settings, and bitstream components such as fabric and sNVM, follow these steps:

In Libero SoC, go to Design Flow > Program Design > Program Design.

  1. Right-click Generate Bitstream, and select Configure Options....
  2. The Configure Bitstream window opens.
  3. Select Custom security, Fabric, and sNVM.
  4. Click OK.

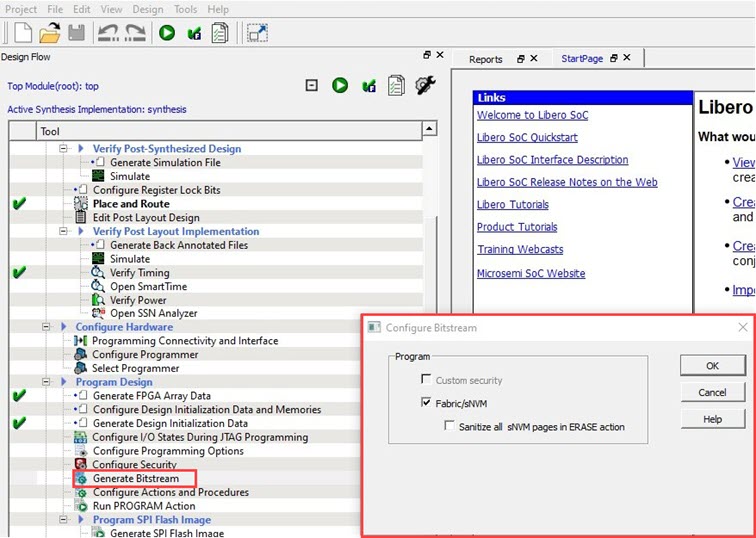

Figure 1-6. Configure Bitstream Window

To export bitstream files, go to Design Flow > Handoff Design for Production > Export Bitstream.

Note: Security only bitstream must be programmed only on erased or blank devices. If the security bitstream is used to program a previously programmed FPGA, it disables the FPGA Array. The fabric must be re-programmed to enable it.
