5.4.1 Hexadecimal Communication

Perform the following steps for Hexadecimal communication.

  1. Enter the Hex command in the text box.
  2. Then double-click the input type display until H is shown.
  3. Click ˄ to send the Hex command input manually.

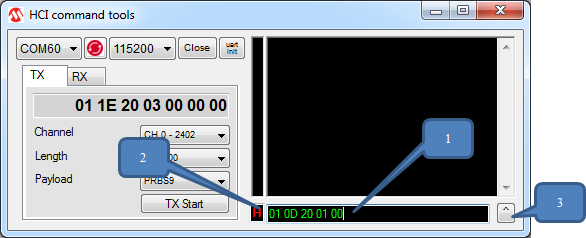

    Figure 5-13. Start Hexadecimal Communication
  4. The sent manual input command is shown in the log.
  5. The log displays the format as H (Hexadecimal) or S (String). Yellow represents the sent command [Hex] and Green represents the received command [Hex].

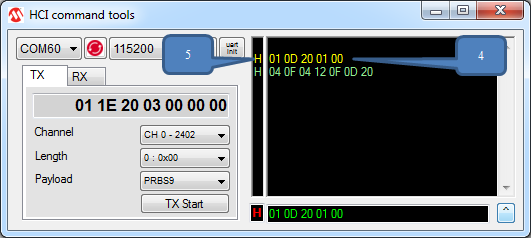

    Figure 5-14. Sent/Received Command

Provide the Hexadecimal input with 1 byte (Min: 00, Max: FF). For example: 01 1E 20 03 00 00 00

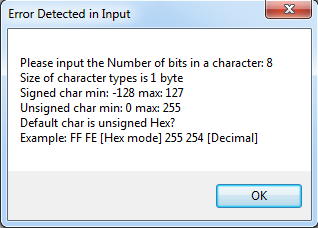

Figure 5-15. Error Detected in Input
