1.4 Ordering Information

The M2GL150 device is taken as an example and explains the various parts and their purposes.

The following figure shows the IGLOO 2 Ordering Information:

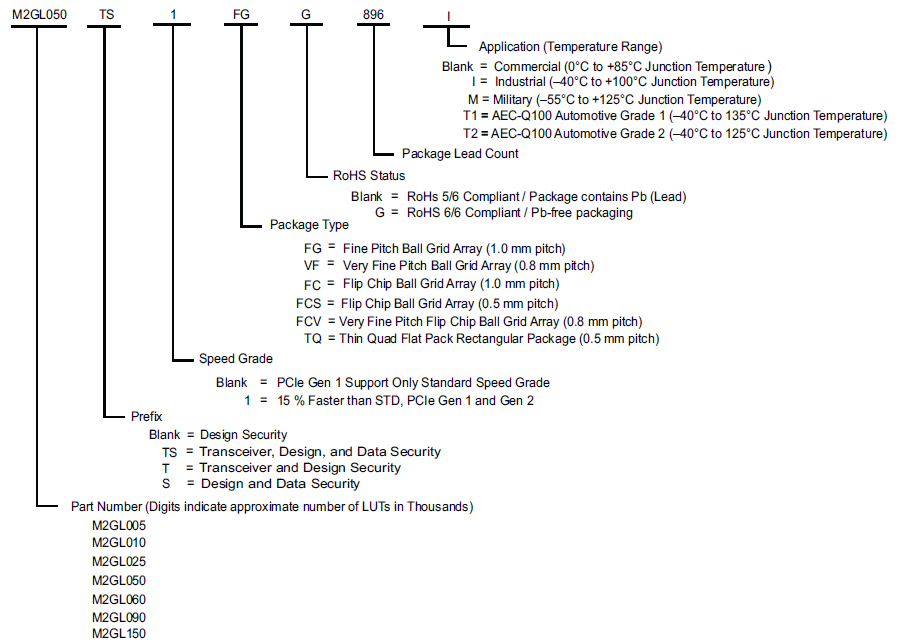

Figure 1-2. IGLOO 2 Ordering Information

Note:

M2GL005 devices are not available with transceivers or in the military temperature grade.
Automotive grade devices are available with S/TS.

The online versions of the documents are provided as a courtesy. Verify all content and data in the device’s PDF documentation found on the device product page.
