6 Mechanical Drawings

The following illustrations show the top, bottom, and side views and dimensions for the RT PolarFire FPGAs.

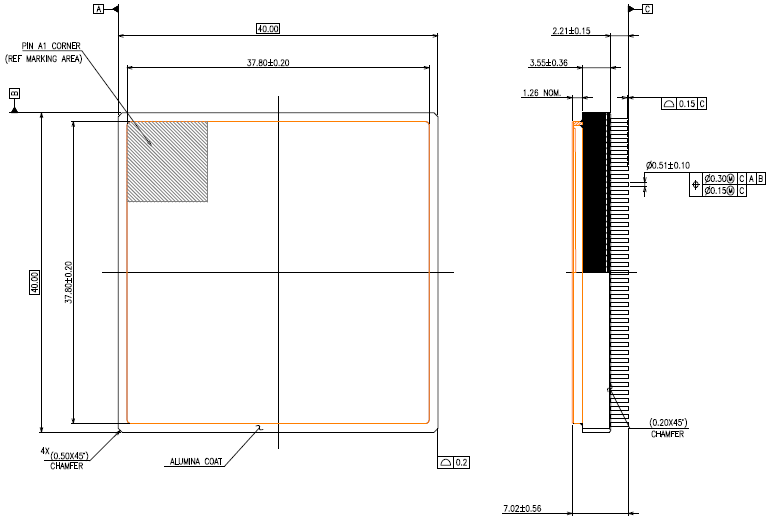

Figure 6-1. RTPF500T-CG1509 Package Top-View and Side-View

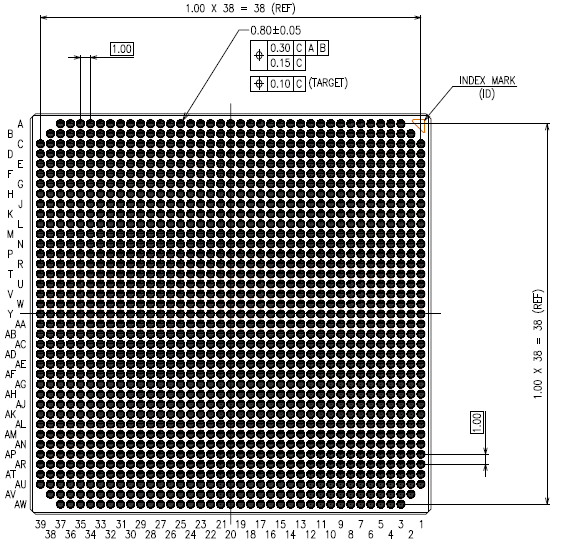

Figure 6-2. RTPF500T-CG1509 Package Bottom-View

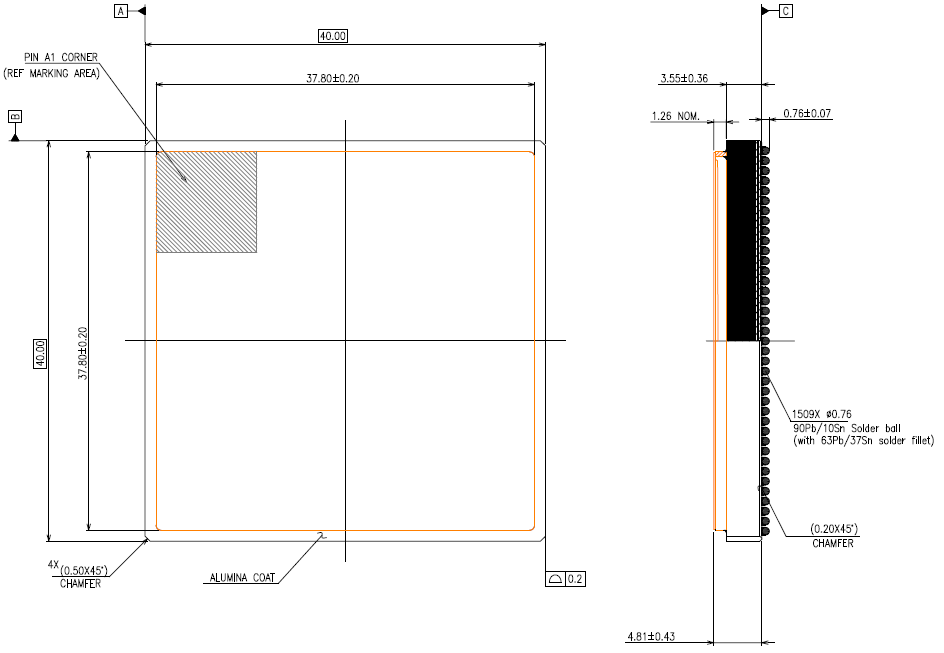

Figure 6-3. RTPF500T-CB1509 Package Top-View and Side-View
Figure 6-4. RTPF500T-CB1509 Package Bottom-View
