1 Potentiostat Circuit BBS

The Potentiostat Circuit BBS board features a potentiostat circuit design with an unpopulated footprint for users to add an electrochemical gas sensor of their choice.

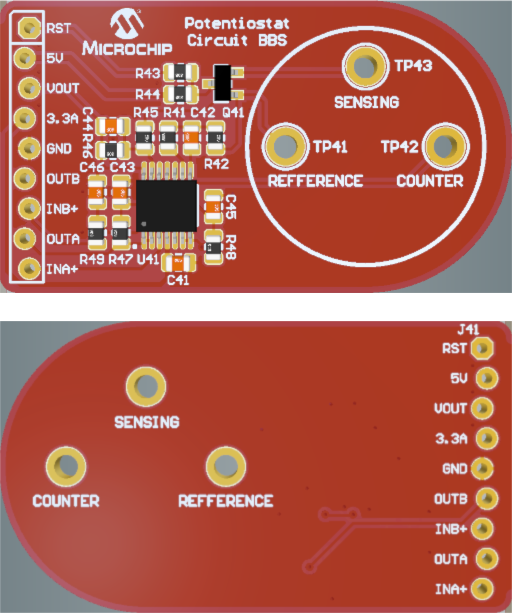

Figure 1-6. Potentiostat Circuit BBS Board (Front and Back View)

MCP6V14 Product Page: www.microchip.com/en-us/product/MCP6V14

MCP6V14 Collateral: www.microchip.com/en-us/product/MCP6V14#Documentation
