1 Non-Inverting Amplifier BBS

The Non-Inverting Amplifier BBS features a 5-Lead SOT23 operational amplifier footprint with a circuit design that can be configured as either a non-inverting amplifier, a voltage follower, a Sallen-Key filter or a difference amplifier.

The BBS board included in the BB91A23A Building Block Solutions - Embedded Systems Kit is populated with a MCP6V11 and a bypass capacitor. All other components are unpopulated for the users to configure.

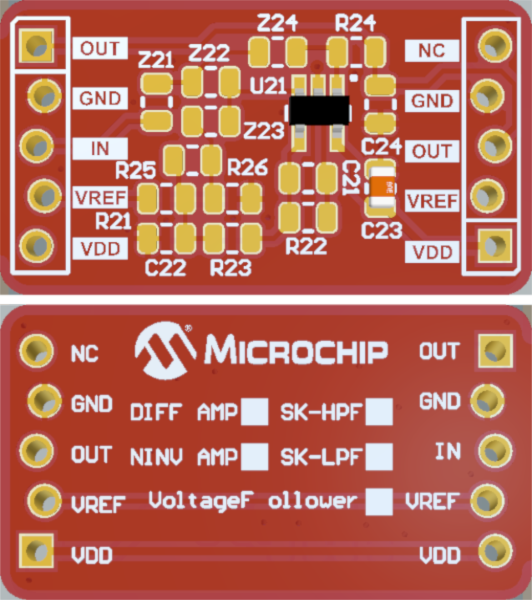

Figure 1-4. Non-Inverting Amplifier BBS Board (Front and Back View)

MCP6V11 Product Page: www.microchip.com/en-us/product/mcp6v11

MCP6V11 Collateral : www.microchip.com/en-us/product/mcp6v11#Documentation
