1 MCP9700B – Analog Temperature Sensor

The MCP9700B BBS board (BB93Z17A) features the MCP9700B – an analog output temperature sensor that converts temperature to an analog voltage between 0V and V_DD.

When used with a 12-bit ADC and a 4.096V voltage reference, the MCP9700B output resolution is 0.1 °C/bit, calculated using the following equation:

T (° C) = \frac{O u t p u t - 500 m V}{10 m V / ° C}

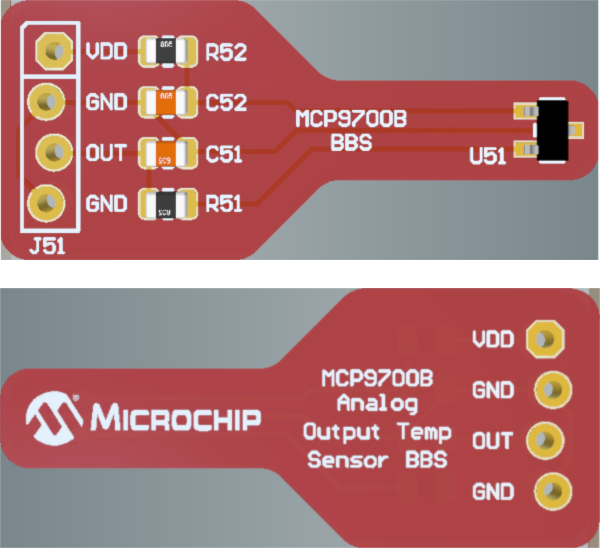

Figure 1-8. MCP9700B BBS Board (Front and Back View)

MCP9700B Product Page: www.microchip.com/en-us/product/mcp9700b

MCP9700B Collateral: www.microchip.com/en-us/product/mcp9700b#Documentation

DS50004147A
