1 MCP3564R – 24-bit Delta-Sigma ADC

The MCP3564R BBS board (BB88G26A) features the MCP3564R 8-channel, 24-bit, 153.6 ksps Delta-Sigma ADC with an internal voltage reference, oscillator, temperature sensor and burnout sensor detection.

MCP3564R has extensive software and firmware examples, APIs, an evaluation board and a weight-scale reference design for easy integration.

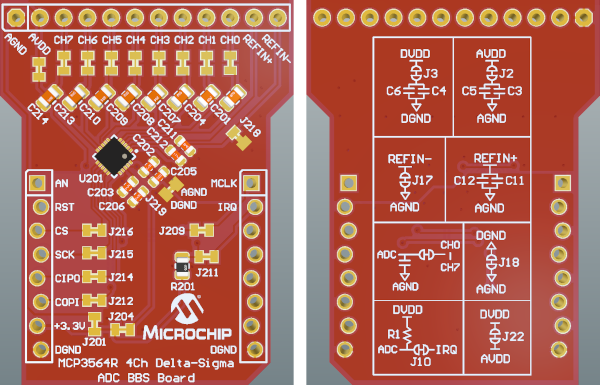

Figure 1-2. MCP3564R BBS Board (Front and Back View)

MCP3564R Product Page: www.microchip.com/en-us/product/mcp3564r

MCP3564R Collateral: www.microchip.com/en-us/product/mcp3564r#Documentation
