4.1.1.1 Extension Template 1

This is the most basic extension module and will fit all MCU boards. This means that this extension is the preferred module when starting a design.

Features:

  • 30mm x 50mm

  • One female standard extension header

  • ID system

  • Two mounting holes with GND

  • Two test jig holes

  • Two rubber feet

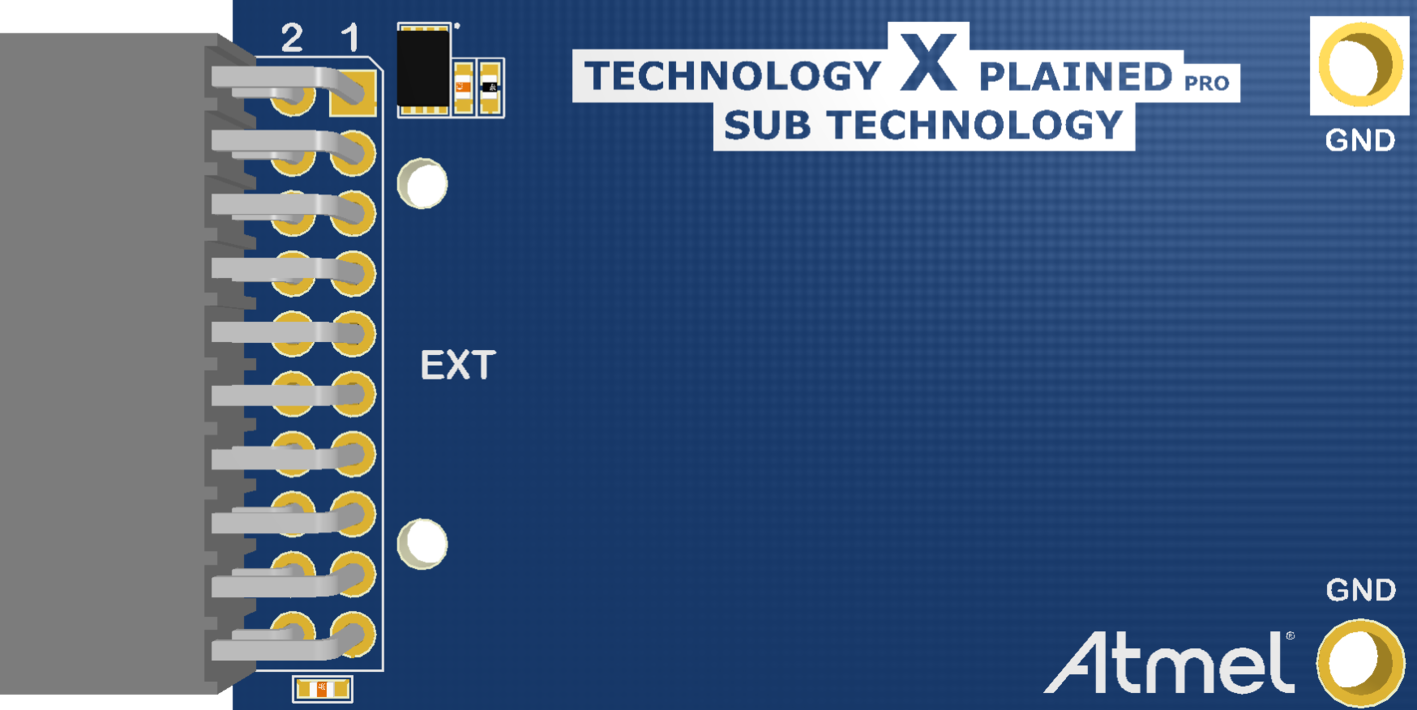

Figure 4-1. Standard Extension 1 3D View
Figure 4-2. Standard Extension 1 Component Placement
Figure 4-3. Standard Extension 1 Mechanical Dimensions
