3.4 Creating the main.c File

To update the main.c file, perform the following steps:

  1. On the SoftConsole menu, click File > New > Source File.

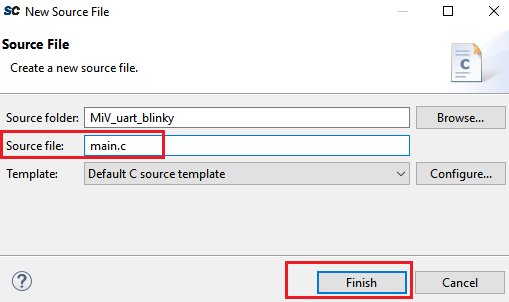

  2. In the New Source File dialog box, enter main.c in the Source file field, and then click Finish, as shown in the following figure.
    Figure 3-10. main.c File Creation

    The main.c file is created inside the project, as shown in the following figure.

    Figure 3-11. The main.c File
  3. Copy all of the content of the main.c from DesignFiles_directory\FW, and paste it in the main.c file of the SoftConsole project.
  4. Save the SoftConsole main.c file.
  5. Similarly, create another file named hw_platform.h.
  6. Copy all of the content of the hw_platform.h from the DesignFiles_directory\FW, and paste it in the newly created hw_platform.h file.
Important: The hw_platform.h file includes the system clock frequency, baud rate, and base addresses of peripherals. The hw_platform.h file appears, as shown in the following figure.
Figure 3-12. The hw_platform.h File
