2.2 Creating a New SmartDesign Component

To create a new SmartDesign component:

  1. In Libero, select File > New > SmartDesign.
  2. In the Create New SmartDesign dialog box, enter top as the name of the new SmartDesign project, as shown in the following figure.

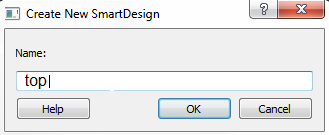

    Figure 2-3. Create New SmartDesign
  3. Click OK.

    The top SmartDesign component is created.
