9.6.6 Removing I/O Assignments
(Ask a Question)To remove a DDR Memory Interface I/O assignment:
- Select the Port tab in the Design Tree view.
- Right click the Memory Interface in the Design Tree view.
-
Select Unplace <memory_interface_name> .
See the following figure.

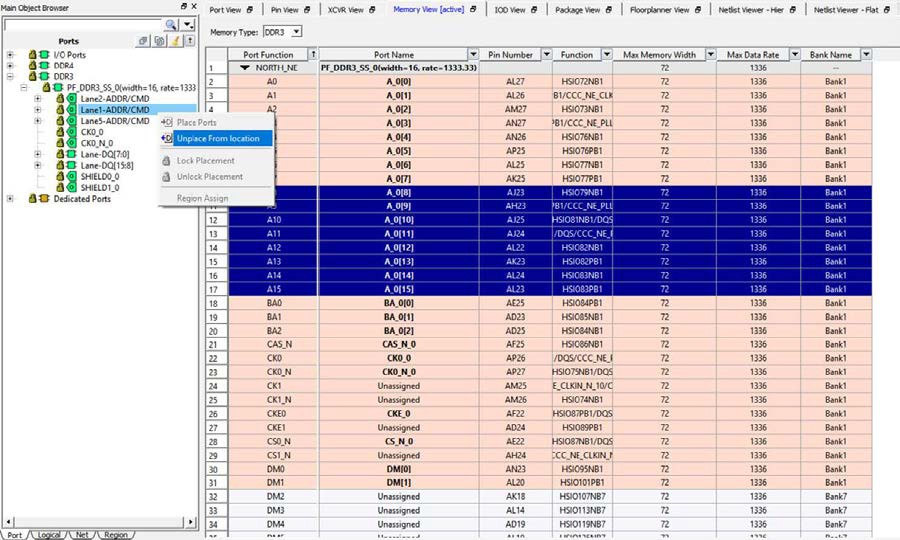

Figure 9-11. Removing Memory Interface I/O Assignment
