45.10.4 Analog-to-Digital Converter (ADC) Characteristics

Table 45-22. Operating Conditions⁽¹⁾
Symbol	Parameters	Conditions	Min.	Typ.	Max.	Unit
Res	Resolution		-	-	12	bits
Rs	Sampling rate⁽²⁾	SAMPLEN = 3 resolution 12 bit (CTRLC.RESSEL= 0)	10	-	1000	ksps
Nb_cycles	Differential mode Number of ADC clock cycles SAMPCTRL.OFFCOMP=1	resolution 12 bit (CTRLC.RESSEL= 0)	-	16	-	cycles
		resolution 10 bit (CTRLC.RESSEL= 2)		14
		resolution 8 bit (CTRLC.RESSEL= 3)		12
	Differential mode Number of ADC clock cycles SAMPCTRL.OFFCOMP=0 SAMPLEN corresponds to the decimal value of SAMPCTRL.SAMPLEN[5:0] register	resolution 12 bit (CTRLC.RESSEL= 0)	-	SAMPLEN+13	-	cycles
		resolution 10 bit (CTRLC.RESSEL= 2)		SAMPLEN+11
		resolution 8 bit (CTRLC.RESSEL= 3)		SAMPLEN+9
	Single-ended mode Number of ADC clock cycles SAMPCTRL.OFFCOMP=1	resolution 12 bit (CTRLC.RESSEL= 0)	-	16	-	cycles
		resolution 10 bit (CTRLC.RESSEL= 2)		15
		resolution 8 bit (CTRLC.RESSEL= 3)		13
	Single-ended mode Number of ADC clock cycles SAMPCTRL.OFFCOMP=0 SAMPLEN corresponds to the decimal value of SAMPCTRL.SAMPLEN[5:0] register	resolution 12 bit (CTRLC.RESSEL= 0)	-	SAMPLEN+13	-	cycles
		resolution 10 bit (CTRLC.RESSEL= 2)		SAMPLEN+12
		resolution 8 bit (CTRLC.RESSEL= 3)		SAMPLEN+10
f_adc	ADC Clock frequency	-	160	-	16000	kHz
Ts	Sampling time	SAMPCTRL.OFFCOMP = 1	250	-	25000	ns
	Sampling time	SAMPCTRL.OFFCOMP = 0	(SAMPLEN+1)/fadc	-	-	s
	Sampling time with INTREF as input		10	-	-	us
V_CNV	Conversion range	Differential mode	-VREF	-	+VREF	V
V_CNV	Conversion range	Single-ended mode	0	-	VREF	V
Vref	Reference input	-	2	-	VDDANA-0.6	V
Vin	Input channel range	-	0	-	VDDANA	V
Vcmin	Input common mode voltage	CTRLC.R2R = 1	0.2	-	VREF-0.2	V
Vcmin	Input common mode voltage	CTRLC.R2R = 0	VREF/2-0.2	-	VREF/2+0.2	V
CSAMPLE	Input sampling capacitance		-	-	3.2	pF
RSAMPLE	Input sampling on-resistance	For a sampling rate at 1 Msps	-	1000	1715	Ω
Rref	Reference input source resistance		0	-	1000	kΩ

Note:

These values are based on simulation and not covered by test limits in production or characterization.
Sampling rate (in samples per second) is equal to (fadc/Nb_cycles).

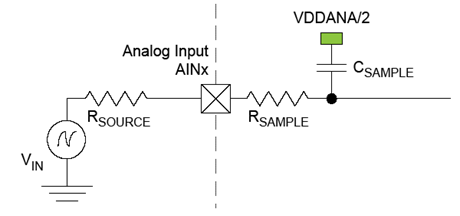

The minimum sampling time t_samplehold for a given R_source can be calculated using this formula:

t_{samplehold} \geq (R_{sample} + R_{source}) \times C_{sample} \times (n + 2) \times \ln (2)

For 12-bit accuracy:

t_{samplehold} \geq (R_{sample} + R_{source}) \times C_{sample} \times 9.7

Table 45-23. Differential Mode ⁽¹⁾
Symbol	Parameter	Conditions	Measurement			Unit
Symbol	Parameter	Conditions	Min.	Typ	Max.	Unit
ENOB	Effective Number of bits	Vddana = 5.0V Vref = Vddana	10.5	10.8	11.3	bits
ENOB	Effective Number of bits	Vddana = 2.7V Vref = 2.0V	9.9	10.0	11.2	bits
TUE	Total Unadjusted Error Condition: R2R disabled with offset and gain compensation (REFCOMP = 1 and OFFCOMP = 1)	Vddana = 5.0V Vref = Vddana	-	4.2	6.7	LSB
TUE		Vddana = 2.7V Vref = 2.0V	-	4.8	7.9	LSB
INL	Integral Non Linearity	Vddana = 5.0V Vref = Vddana	-	+/-1.5	+/-3	LSB
INL	Integral Non Linearity	Vddana = 2.7V Vref = 2.0V	-	+/-3.2	+/-3.9	LSB
DNL	Differential Non Linearity	Vddana = 5.0V Vref = Vddana	-	-0.8/+1.1	-1/+1.9	LSB
DNL	Differential Non Linearity	Vddana = 2.7V Vref = 2.0V	-	-0.9/+1.3	-1/+2.1	LSB
GE	Gain Error	Vddana = 2.7V Vref = 2.0V	-	+/-18	+/-57	mV
		Vddana = 5.0V Vref = 4.096V	-	+/-41	+/-100
		Vddana = 3.0V Vref = Vddana	-	+/-17	+/-66
		Vddana = 5.0V Vref = Vddana	-	+/-39	+/-81
TCg	Gain Drift	Vddana = 5.0V Vref = Vddana	-250	-210	-170	uV/°C
OE	Offset Error	Vddana = 2.7V Vref = 2.0V	-	+/-1.4	+/-11	mV
		Vddana = 5.0V Vref = 4.096V	-	+/-6	+/-18
		Vddana = 3.0V Vref=Vddana	-	+/-2	+/-9
		Vddana = 5.0V Vre f= Vddana	-	+/-0.2	+/-23
Tco	Offset Drift	Vddana = 5.0V Vref = Vddana	20	80	120	uV/°C
SFDR	Spurious Free Dynamic Range	Fs = 1Msps / Fin = 14 kHz / Full range Input signal Vddana = 5.0V Vref = Vddana	71	75	81	dB
SINAD	Signal to Noise and Distortion ratio		65	67	68
SNR	Signal to Noise ratio		67	68	69
THD			-77	-74	-70
	Noise RMS	External Reference voltage	-	0.5	2.0	mV

Note:

These values are based on characterization and not covered by test limits in production.

Table 45-24. Single-Ended Mode ⁽¹⁾
Symbol	Parameter	Conditions	Measurement			Unit
Symbol	Parameter	Conditions	Min.	Typ	Max.	Unit
ENOB	Effective Number of bits	Vddana = 5.0V Vref=Vddana	9.1	9.7	10	bits
ENOB	Effective Number of bits	Vddana = 2.7V Vref=2.0V	9.0	9.2	10	bits
TUE	Total Unadjusted Error Condition: R2R disabled with offset and gain compensation (REFCOMP = 1 and OFFCOMP = 1)	Vddana = 5.0V Vref = Vddana	-	18.4	26.5	LSB
TUE		Vddana = 2.7V Vref = 2.0V	-	30.4	53.8	LSB
INL	Integral Non Linearity	Vddana = 5.0V Vref = Vddana	-	+/-2.2	+/-4	LSB
INL	Integral Non Linearity	Vddana = 2.7V Vref = 2.0V	-	+/-4.1	+/-6	LSB
DNL	Differential Non Linearity	Vddana = 5.0V Vref=Vddana	-	-0.8/+1	-1/+1.9	LSB
DNL	Differential Non Linearity	Vddana = 2.7V Vref = 2.0V	-	-1/+1.1	-1/+2.4	LSB
GE	Gain Error	Vddana = 2.7V Vref = 2.0V	-	+/-13	+/-28	mV
		Vddana = 5.0V Vref = 4.096V	-	+/-26	+/-52
		Vddana = 3.0V Vref = Vddana	-	+/-14	+/-24
		Vddana = 5.0V Vref = Vddana	-	+/-22	+/-42
TCg	Gain Drift	Vddana = 5.0V Vref = Vddana	-170	-140	-80	uV/°C
OE	Offset Error	Vddana = 2.7V Vref = 2.0V	-	+/-2.2	+/-21	mV
		Vddana = 5.0V Vref = 4.096V	-	+/-2.3	+/-61
		Vddana = 3.0V Vref=Vddana	-	+/-15	+/-42
		Vddana = 5.0V Vref = Vddana	-	+/-31	+/-80
Tco	Offset Drift	Vddana = 5.0V Vref = Vddana	160	180	210	uV/°C
SFDR	Spurious Free Dynamic Range	Fs = 1Msps / Fin = 14 kHz / Full range Input signal Vddana = 5.0V Vref = Vddana	69	71	73	dB
SINAD	Signal to Noise and Distortion ratio		57	60	61
SNR	Signal to Noise ratio		57	61	61
THD			-72	-70	-66
	Noise RMS	External Reference voltage	-	0.7	2.0	mV

Note:

These values are based on characterization and not covered by test limits in production.

Table 45-25. Power Consumption ⁽¹⁾
Symbol	Parameters	Conditions	Ta	Typ.	Max.	Units
IDD VDDANA	Differential mode	fs = 1Msps / Reference buffer disabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA=Vref= 5.5V	Max 85°C Typ 25°C	905	1021	uA
		fs = 1Msps / Reference buffer enabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref = 5.5V		1144	1403
		fs = 10 ksps / Reference buffer disabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA=Vref= 5.5V		381	460
		fs = 10 ksps / Reference buffer enabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref = 5.5V		609	857
	Single Ended mode	fs = 1Msps / Reference buffer disabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref = 5.5V	Max 85°C Typ 25°C	984	1077	uA
		fs = 1Msps / Reference buffer enabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref=5.5V		1178	1444
		fs = 10 ksps / Reference buffer disabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref = 5.5V		437	528
		fs = 10 ksps / Reference buffer enabled / BIASREFBUF = '110', BIASREFCOMP = '111' VDDANA = Vref = 5.5V		635	888

Note:

These values are based on characterization.
