4.1.3.1 SNMP-System Configuration

The SNMP System Configuration is used to enable/disable SNMP and set the SNMPv3 engine ID.

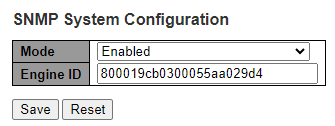

Figure 4-3. SNMP System Configuration
???

The SNMP System Configuration page has the following parameters:

  • Mode: To enable/disable SNMP
  • Engine ID: Indicates the SNMPv3 engine ID. The string must contain an even number (in hexadecimal format) with number of digits between 10 and 64, excluding all 0 or all F. Only users on this Engine ID can access the device (local users). Therefore, changing the Engine ID revokes access for all current local users.
