11 Appendix 1: Programming the Device Using FlashPro Express

This chapter describes how to program the PolarFire device with the Job programming file using a FlashPro programmer. The default location of the .stp file is mpf_an4949_v2022p3_df\Programming_Job.

To program the PolarFire device using FlashPro Express, perform the following steps:
  1. Ensure that the jumper settings on the board are the same as listed in Table 9-3.
    Tip: The power supply switch must be switched OFF while making the jumper connections.
  2. Connect the power supply cable to the J9 connector on the board.
  3. Connect the USB cable from the Host PC to the J5 (FTDI port) on the board.
  4. Power on the board using the SW3 slide switch.
  5. On the host PC, launch the FlashPro Express software.
  6. Click New or select New Job Project from FlashPro Express Job from Project menu to create a new job project. See the following figure.
    Figure 11-1. FlashPro Express Job Project
  7. Enter the following in the New Job Project from FlashPro Express Job dialog box:
    • Programming job file: Click Browse, and navigate to the location where the .job file is located and select the file. The default location is <download_folder>\mpf_an4949_v2022p3_df\Programming_Job.
    • FlashPro Express job project location: Click Browse and navigate to the location where you want to save the project.

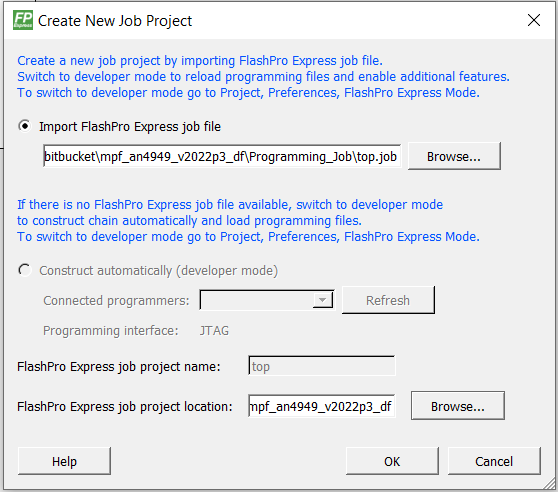

    Figure 11-2. New Job Project from FlashPro Express Job
  8. Click OK. The required programming file is selected and ready to be programmed in the device.
  9. The FlashPro Express window appears. Confirm that a programmer number appears in the Programmer field. If it does not, confirm the board connections and click Refresh/Rescan Programmers.
    Figure 11-3. Programming the Device
  10. Click RUN. When the device is programmed successfully, a RUN PASSED status is displayed.
    Figure 11-4. FlashPro Express—RUN PASSED
  11. Close FlashPro Express or in the Project tab, click Exit.
