4.1 Installing PCIe Demo Application

To install the PolarFire PCIe Demo application, perform the following steps:

  1. Install the GUI (setup.exe) from the following design files folder: mpf_an4597_df\GUI
  2. Double click the setup.exe in the provided GUI installation:

    (GUI\setup.exe).

  3. Apply default options, as shown in the following figure.

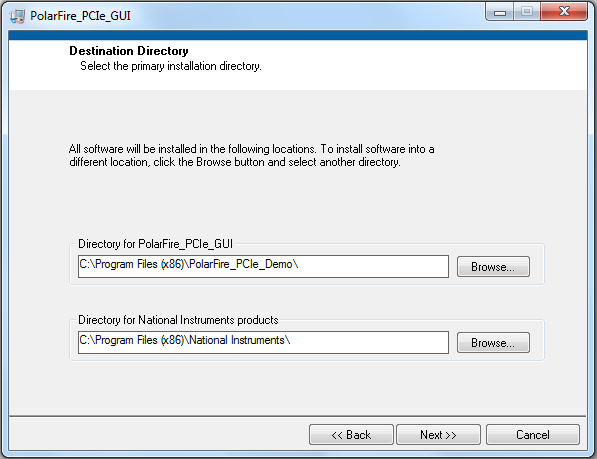

    Figure 4-1. Installing PCIe Demo Application
  4. To start the installation, click Next.
  5. To complete the installation, click Finish.

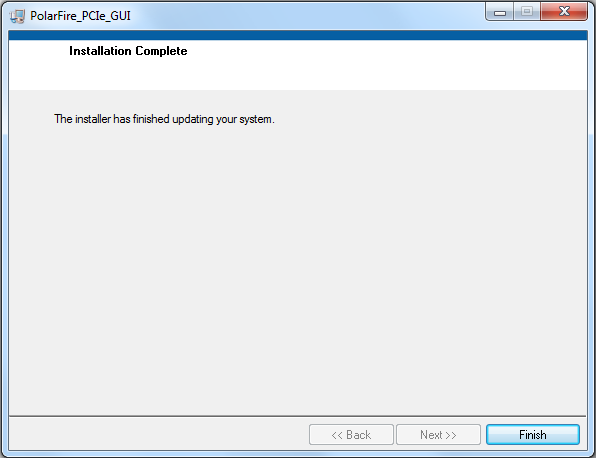

    Figure 4-2. Successful Installation of PCIe Demo Application
