1.5 Mechanical Drawings

The following illustrations show the top, bottom, and side views, and dimensions for the PolarFire SoC FPGAs.

Figure 1-10. MPFS250/MPFS460-FC1152M Package Top-View and Side-View
Figure 1-11. MPFS250/MPFS460-FC1152M Package Bottom-View

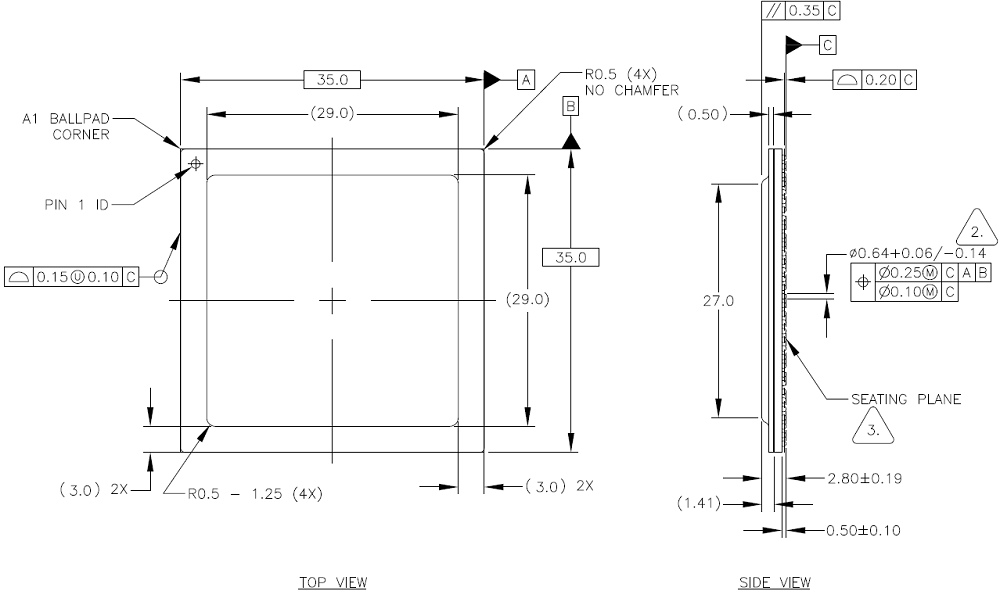

Figure 1-12. MPFS460T/MPFS250T-FCG1152 Package Top-View and Side-View

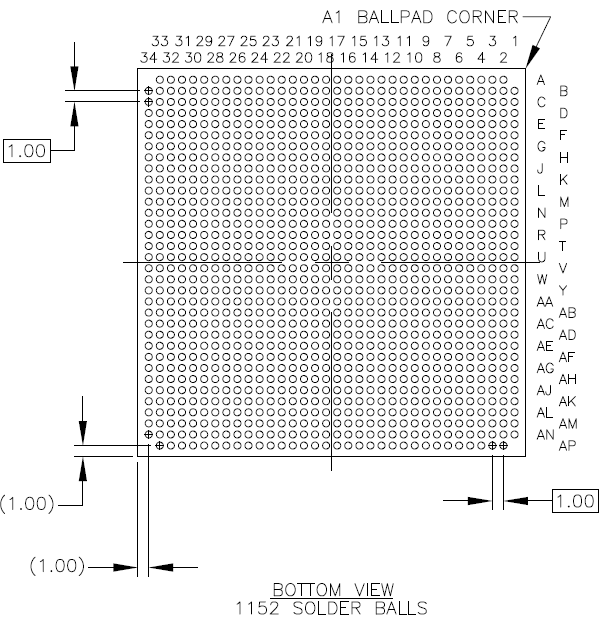

Figure 1-13. MPFS460T/MPFS250T-FCG1152 Package Bottom-View
Figure 1-14. MPFS250T/MPFS160T/MPFS095T-FCVG784 Package Top-View and Side-View
Figure 1-15. MPFS250T/MPFS160T/MPFS095T-FCVG784 Package Bottom-View
Figure 1-16. MPFS250T/MPFS160T/MPFS095T/MPFS025T-FCVG484 Package Top-View and Side-View
Figure 1-17. MPFS250T/MPFS160T/MPFS095T/MPFS025T-FCVG484 Package Bottom-View

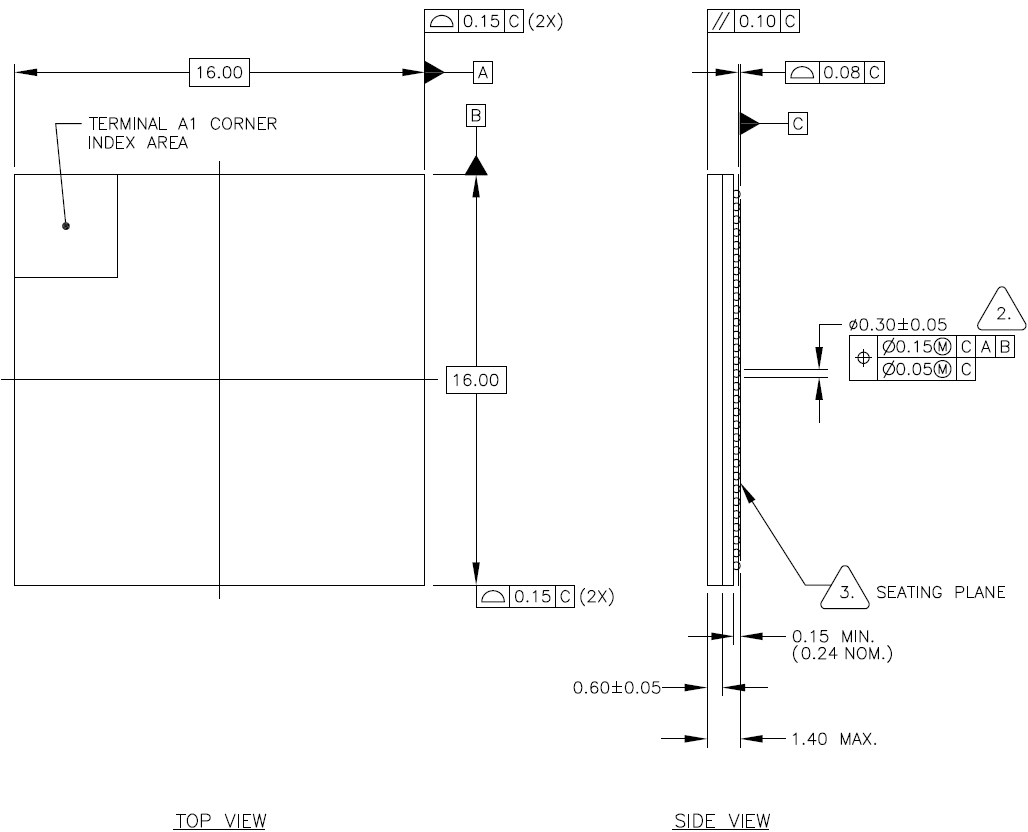

Figure 1-18. MPFS250T/MPFS160T/MPFS095T-FCSG536 Package Top-View and Side-View

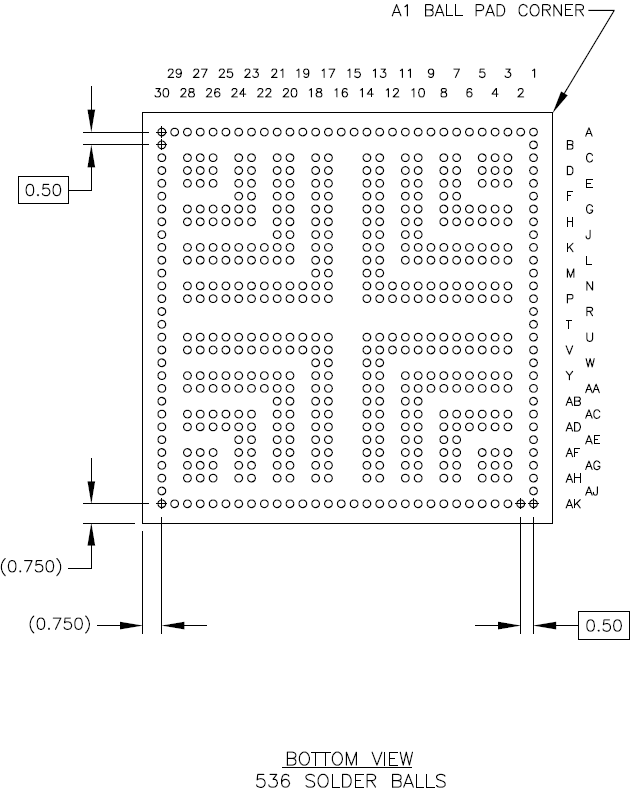

Figure 1-19. MPFS250T/MPFS160T/MPFS095T-FCSG536 Package Bottom-View

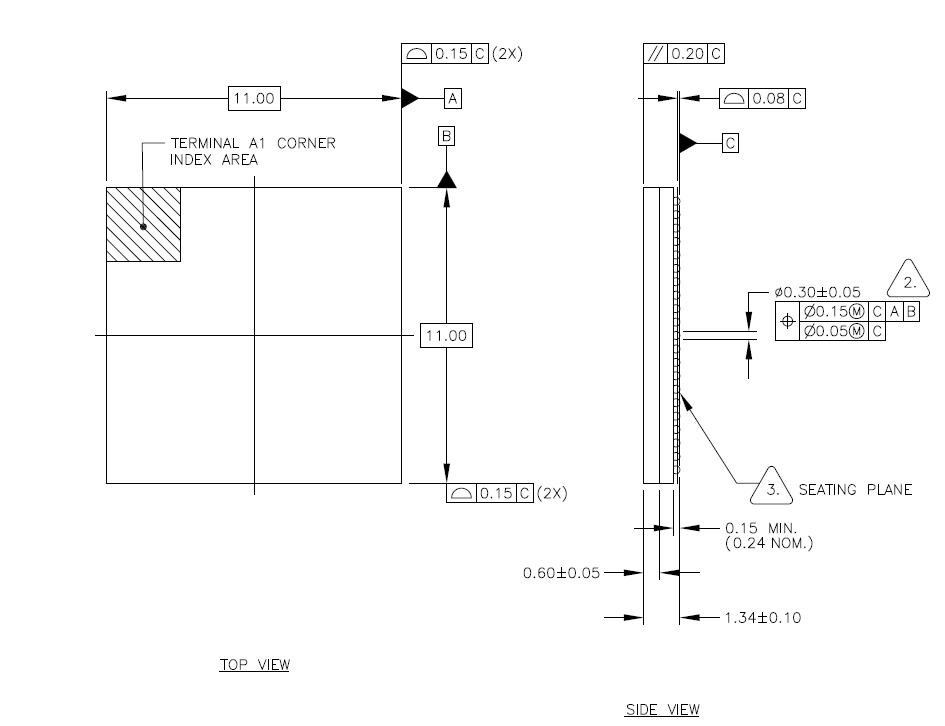

Figure 1-20. MPFS095T-FCSG325 Package Top-View and Side-View

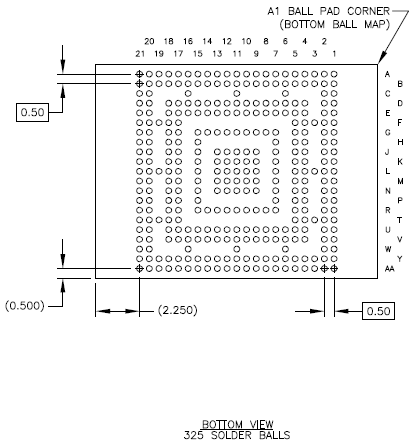

Figure 1-21. MPFS095T-FCSG325 Package Bottom-View
Figure 1-22. MPFS025T-FCSG325 Package Top-View and Side-View

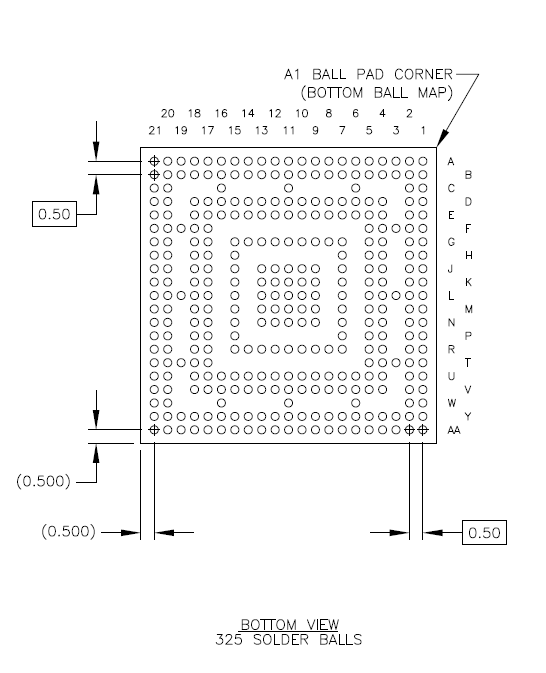

Figure 1-23. MPFS025T-FCSG325 Package Bottom-View

The following table lists the PolarFire SoC FPGAs Package description and specification.

Table 1-10. PolarFire SoC FPGAs Package Information
PackageDescriptionPackage Specifications
Package TypePitch (mm)Size (mm)Maximum I/Os
FCG1152Flip-chip with lidBGA135 × 35512
FCVG784Flip-chip with lidBGA0.823 x 23244
FCVG484Flip-chip with lidBGA0.819 × 19284
FCSG536Flip-chip (molded)CSP0.516 x 16300
FCSG325Flip-chip (molded)CSP0.511 × 11, 11 × 14.5170
