3.4 Bluetooth® Low Energy Scanning Extended Advertisements

This section describes in detail the scanning of Extended Advertisements (ADV_EXT_IND, ADV_AUX_IND) on the Curiosity board. For a successful scan of Extended Advertisement user needs to have a broadcaster transmitting these Advertisements. In BLE, a central or observer always starts with scanning.

Using the “scan_ext_adv” application example in combination with “ext_adv” example will enable users to test features like long range (Coded PHY) and sending data (1M, 2M, Coded PHY) over extended advertisements

Users can choose to run the precompiled application example .hex file on the Curiosity Board and experience the demo or go through the steps involved in developing this application from scratch

These examples are incrementally structured upon one another. Recommendation is to follow the examples in order, by learning the basic concepts first and then progressing to the more advanced topics.

Hardware Requirement

Table 3-7. Hardware Requirements
Tool	Quantity
Curiosity Board	2
Micro USB cable	2

Software Requirement

MPLAB X IPE: For programming the precompiled hex file.
MPLAB X IDE: For programming the application example.
Teraterm: Terminal Emulator for displaying UART output.

Programming the Precompiled `.hex` File or Application Example

Programming the .hex File using MPLAB X IPE

Central Device: Precompiled .hex file is located in “<Harmony Content Path>\wireless_apps_ble\apps\scan_ext_adv\hex” folder
Peripheral Device: Precompiled .hex file is located in “Harmony Content Path>\wireless_apps_ble\apps\ext_adv\hex” folder
For more information on the programming steps, refer to the Programming a Device in MPLAB IPE.
Note: Users must choose the correct device and tool information.

Programming the Application using MPLAB X IDE

Follow the steps mentioned in Running a Precompiled Example
Central Device: Open and program the application example “scan_ext_adv_xxxx.X” where xxxx refer to device (for example: WBZ451, project file: ble_ancs_app_wbz451.X) located in “<Harmony Content Path>\wireless_apps_ble\apps\scan_ext_adv\firmware” using MPLAB X IDE
Peripheral Device: Open and program the application example “ext_adv_xxxx.X” where xxxx refer to device (for example: WBZ451, project file: ble_ancs_app_wbz451.X) located in “<Harmony Content Path>\wireless_apps_ble<\apps\ext_adv\firmware” using MPLAB X IDE

For more details on finding the Harmony content path, refer to Installing the MCC Plugin.

Demonstration

Refer BLE Scanning Extended Advertisement Demo Description.

Developing the Application from Scratch Using MCC

This section explains the steps required by a user to develop this application example from scratch using MCC

Note: It is recommended that new users of MCC to go through the MPLAB® Code Configurator (MCC) User's Guide.

Create a new MCC Harmony Project by selecting the device. For more details, refer to Creating a New MCC Harmony Project.
Launch the MCC from the toolbar as illustrated below. The project graph will open with the default components.
Figure 3-48. MCC
In the Device Resources window, expand Libraries > Harmony > Wireless > Application Services. Then, click the Plus Symbol to add the BLE Config App Service Component to the project
Figure 3-49. BLE Config App Service
All BLE Stack related components will be added into the project graph. Accept dependencies or satisfiers by selecting Yes.
For configuring BLE Config App Service component based on the device refer to Adding BLE Config App Service Component to Project Graph and Selecting the Device in Getting Started with WME Bluetooth Low Energy Applications from Related Links.
To enable digital and communication interfaces, refer to Enabling Digital Input/Output and Communication Interfaces Through System Hardware Definition (SHD) component from Getting Started with WME Bluetooth Low Energy Applications from Related Links.
For FreeRTOS component settings refer to the Configuring FreeRTOS in Getting Started with WME Bluetooth Low Energy Applications from Related Links.
For WBZ451
1. Change WBZ451-CURIOSITY Component setting, as illustrated in the following figure.
  Figure 3-50. WBZ451-CURIOSITY
2. Verify if the project graph window has all the expected components, as illustrated in the following figure:
  Figure 3-51. Project Graph
For WBZ351
1. Change WBZ351-CURIOSITY Component setting as illustrated in the following figure
  Figure 3-52. WBZ351-CURIOSITY
2. Verify if the project graph window has all the expected components, as illustrated in the following figure:
  Figure 3-53. Project Graph
Change BLE Stack Component configuration as illustrated in the following figure
Figure 3-54. BLE Stack

Generating a Code

For more details on code generation, refer to the MPLAB Code Configurator (MCC) Code Generation.

Files Containing User Application Code

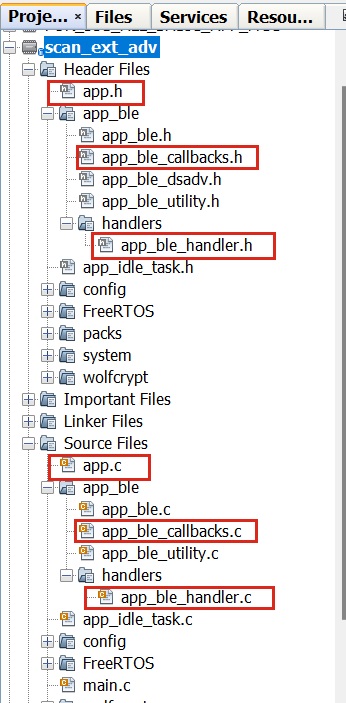

Source code for the application will be generated from the MCC interface by clicking on Generate Code. User can add or edit the code in the highlighted files as illustrated in the following figure.

Details on files that user can modify

Table 3-8. Source Files
Source Files	Usage
`app.c`	Application State machine, includes calls for Initialization of all BLE stack (GAP,GATT, SMP, L2CAP) related component configurations
`app_ble_callbacks.c`	All the event functions related to GAP, GATT, SMP and L2CAP events that user can use or modify . .
`app_utility.c`	Contains generic utility functions that serve the purpose of providing reusable, common functionalities that can be applied across various parts of a program.

Note: app.c is auto generated and has a state machine based application code sample. Users can use this template to develop their application. Main application logic is implemented in
