2.1.4.13 DRV_MCMETROLOGY_GetStatus Function

C

DRV_MCMETROLOGY_STATUS DRV_MCMETROLOGY_GetStatus (void);

Summary

Get the status of the metrology driver.

Description

Metrology function status:

DRV_MCMETROLOGY_STATUS_UNINITIALIZED: Metrology driver has not been initialized
DRV_MCMETROLOGY_STATUS_READY: Metrology driver is ready to be used
DRV_MCMETROLOGY_STATUS_HALT: Metrology driver has been initialized but not opened
DRV_MCMETROLOGY_STATUS_WAITING_IPC: Metrology driver is waiting the init IPC interrupt from the metrology lib as part of the opening routine
DRV_MCMETROLOGY_STATUS_INIT_DSP: IPC interrupt has been triggered indicating that DSP filters has been stabilized to full accuracy
DRV_MCMETROLOGY_STATUS_RUNNING: Metrology library is running and periodic data acquisition is performed

These status values are closely related to the metrology library states. Refer to the metrology library state diagram for more detailed description.

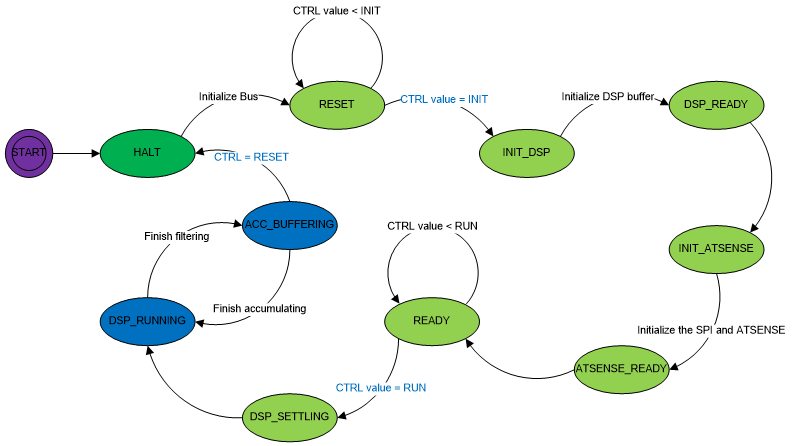

Figure 2-27. Metrology Library State Diagram

Parameters

None.

Returns

Returns the status of the metrology driver.

Example

    case APP_METROLOGY_STATE_START:
    {
        if (DRV_MCMETROLOGY_GetStatus() == DRV_MCMETROLOGY_STATUS_READY)
        {
            if (DRV_MCMETROLOGY_Start() == DRV_MCMETROLOGY_SUCCESS)
            {
                app_metrologyData.state = APP_METROLOGY_STATE_RUNNING;
            }
            else
            {
                app_metrologyData.state = APP_METROLOGY_STATE_ERROR;
            }

            vTaskDelay(10 / portTICK_PERIOD_MS);
        }

        break;
    }

Remarks

None.
