HDR Exit Pattern and HDR Restart Pattern

Once an HDR mode is entered, the HDR exit pattern is used to leave it, always exiting back to SDR mode.

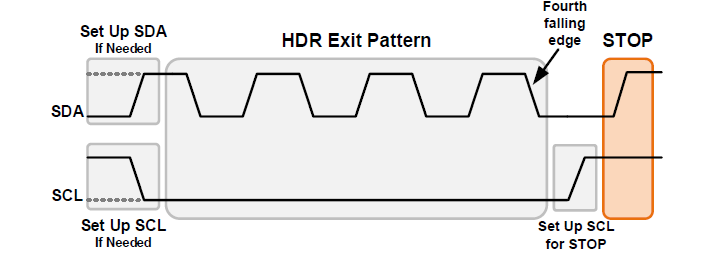

A white rectangular object with black lines AI-generated content may be incorrect. — Figure 24-6. HDR Exit Pattern Followed by STOP

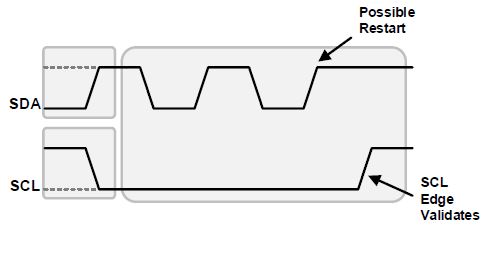

The HDR restart pattern allows multiple messages to be sent while in HDR mode, without forcing intervening exits to SDR mode.
