8.5.3 VHDL Synthesis-Based Design Flow Illustrated

The following figure shows the VHDL synthesis-based design flow for an Actel device using the eProduct Designer and Designer Series software.

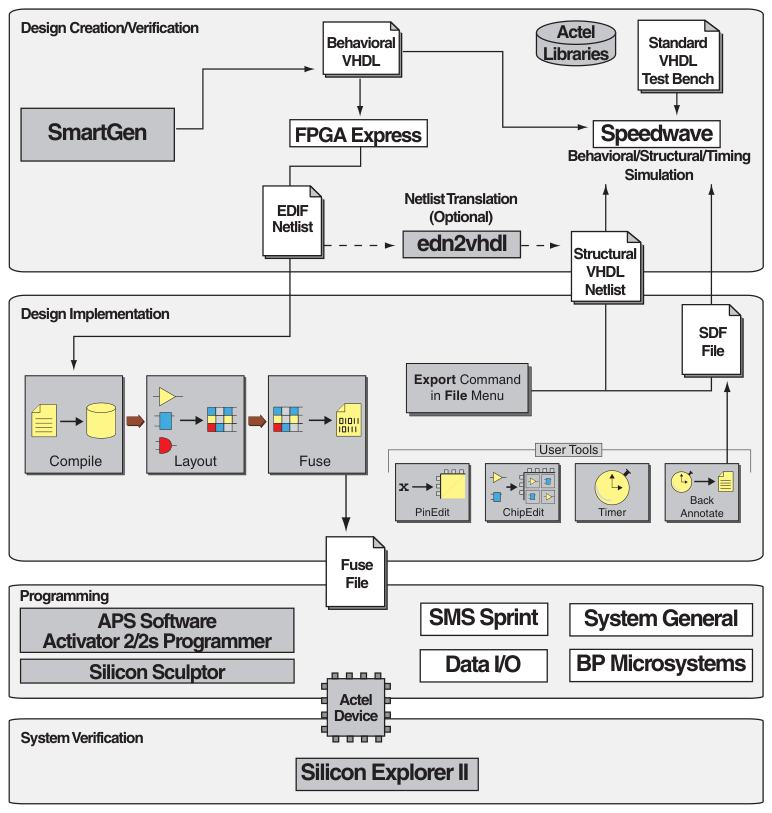

Figure 8-3. Actel-Innoveda VHDL Synthesis-Based Design Flow

The grey boxes in the preceding figure denote Actel-specific utilities/tools.
